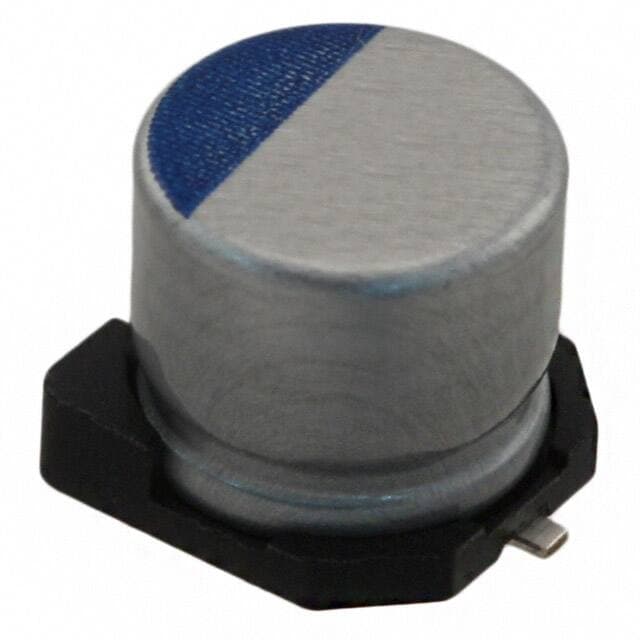

NICHICON PCS1C390MCL9GS
Manufacturer No:
PCS1C390MCL9GS
Manufacturer:
Package:
Radial, Can - SMD
Description:
39?F ±20% Radial, Can - SMD 0.236 6.00mm Tape & Reel (TR) 30mOhm PCS Surface Mount Polymer General Purpose
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PCS1C390MCL9GS information
NICHICON PCS1C390MCL9GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON PCS1C390MCL9GS.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Terminal Shape
- FLAT
- Weight
- 249.986095mg
- Surface Mount Land Size
- 0.260Lx0.260W 6.60mmx6.60mm
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- PCS
- Published
- 2009
- Size / Dimension
- 0.248Dia 6.30mm
- Tolerance
- ±20%
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- Polymer
- Resistance
- 30mOhm
- Terminal Finish
- Silver (Ag)
- Applications
- General Purpose
- Capacitance
- 39?F
- Voltage - Rated DC
- 16V
- ESR (Equivalent Series Resistance)
- 30mOhm
- Polarity
- POLARIZED
- Size Code
- 2626
- Voltage
- 16V
- Lifetime @ Temp
- 5000 Hrs @ 105°C
- Leakage Current
- 125?A
- Ripple Current
- 2.2A
- Life (Hours)
- 5000 hours
- Tan Delta
- 0.12
- Ripple Current @ High Frequency
- 2.2A @ 100kHz
- Diameter
- 6.3mm
- Height
- 6mm
- Height Seated (Max)
- 0.236 6.00mm
- Length
- 7.3mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for NICHICON PCS1C390MCL9GS.
Datasheets:
PCS1C390MCL9GS Overview
System power is determined by 2.2A @ 100kHz ripple current on a high frequency.Electrical device with 30mOhm ESR (Equivalent Series Resistance).It is recommended to operate at -55°C~105°C for stable operation.
PCS1C390MCL9GS Features
2.2A @ 100kHz ripple current on a high frequency
a 30mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
PCS1C390MCL9GS Applications
There are a lot of Nichicon
PCS1C390MCL9GS applications of aluminum polymer capacitors.
- LED driver power supplies
- Phone chargers
- Motherboards
- Servers and adapters (laptop power supplies)
- Medical equipment
- Switching Power Supply and DC/DC Converter.
- Buck up Power Supplies of CPU(VRM etc.)
- Miniature high Power Supply.
