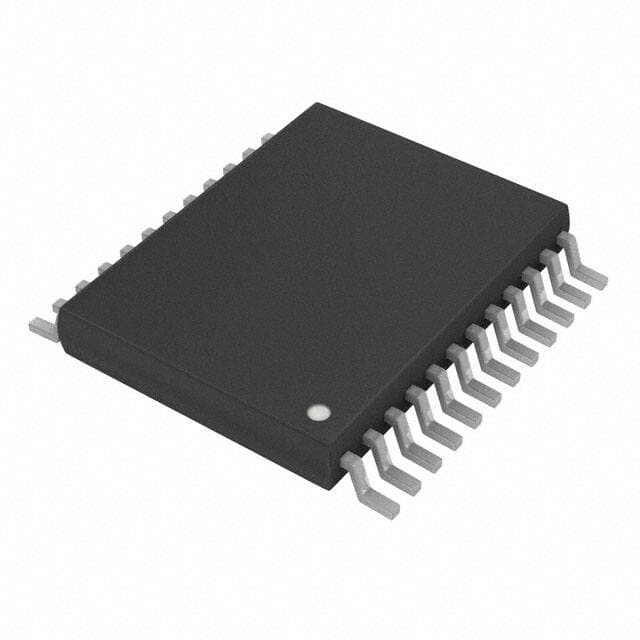

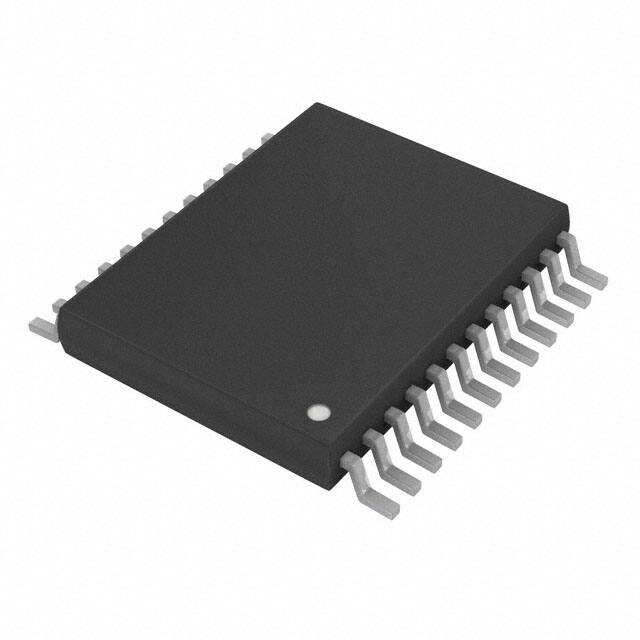

TI PCM3006T

Manufacturer No:

PCM3006T

Manufacturer:

Package:

24-LSSOP (0.240, 6.00mm Width)

Description:

24 Termination 0.65mm 3V CODEC PCM3006 24 Pin 24-LSSOP (0.240, 6.00mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCM3006T information

TI PCM3006T technical specifications, attributes, parameters and parts with similar specifications to TI PCM3006T.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-LSSOP (0.240, 6.00mm Width)

Number of Pins
24

Operating Temperature
-25°C~85°C

Packaging
Tube

JESD-609 Code
e6

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

Type
Stereo Audio

Terminal Finish
TIN BISMUTH

Subcategory
Other Consumer ICs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Base Part Number
PCM3006

Operating Supply Voltage
3.3V

Power Supplies
3V

Max Supply Voltage
3.6V

Min Supply Voltage
2.7V

Number of Bits
16

Data Interface
Serial

Sampling Rate
48 ksps

Voltage - Supply, Analog
2.7V~3.6V

Voltage - Supply, Digital
2.7V~3.6V

Power Consumption
54mW

Number of A/D Converters
1

Signal to Noise Ratio (SNR)
89 dB

Resolution (Bits)
16 b

Sigma Delta
Yes

Number of ADCs / DACs
2 / 2

Dynamic Range, ADCs / DACs (db) Typ
89 / 93

S/N Ratio, ADCs / DACs (db) Typ
89 / 93

Number of Analog Outputs
2

Length
7.95mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI PCM3006T.

Datasheets:

texasinstruments-pcm3006t-datasheets-4376.pdf

texasinstruments-pcm3006t-datasheets-0246.pdf

texasinstruments-pcm3006t-datasheets-0247.pdf

texasinstruments-pcm3006t-datasheets-0248.pdf

PCM3006T Overview

Due to space constraints, it is supplied in the 24-LSSOP (0.240, 6.00mm Width) package. This package uses the Tube packaging method. This electronic part is categorized as a type of Stereo Audio, making it capable of providing high-efficiency performance in a variety of applications. Surface Mount is the mounting type employed by this device. Operating performance -25°C~85°C permits it to function normally. In addition, it is equipped with 2 / 2 ADCs and DACs. The analog circuit receives 2.7V~3.6V as a supply voltage. It receives a voltage of 2.7V~3.6V as its supply voltage. In order to prevent signal reflections from off the end of the transmission line, 24 terminations are used. Essentially, it is an electronic device with 24 pins. Using its base part number PCM3006, it can be used to locate parts that are related. Based on the Surface Mount technology, the module is mounted to a PCB. 3.6V is the maximum value of supply voltage. Analog signals are converted to digital signals by means of 1 A/D converters. The electronic part has been classified as Other Consumer ICs. Minimum supply voltage should remain at 2.7V. Power supplies of 3V are used to operate it. It can be operated from a voltage of 3.3V. A total of 16 bits are provided for storing information. It is expected that 24mA will flow normally through the circuit throughout its lifetime. The device is equipped with 2 analog outputs.

PCM3006T Features

Embedded in the 24-LSSOP (0.240, 6.00mm Width) package
Operating temperature of -25°C~85°C
2 / 2 ADCs / DACs
1 A/D converters
2 analog outputs
