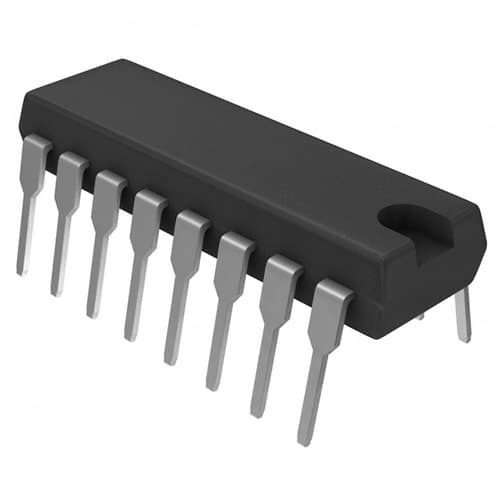

TI PCM1702P

Manufacturer No:

PCM1702P

Manufacturer:

Package:

PDIP

Description:

120 dB dB DAC 2.5 B B 4.57mm μm 6.35mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCM1702P information

TI PCM1702P technical specifications, attributes, parameters and parts with similar specifications to TI PCM1702P.

Type
Parameter

Mount
Through Hole

Package / Case
PDIP

Number of Pins
16

Weight
1.053808g

JESD-609 Code
e4

Pbfree Code
no

Number of Terminations
16

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Subcategory
Other Converters

Technology
BICMOS

Number of Functions
1

Supply Voltage
5V

Pin Count
16

Operating Supply Voltage
5.25V

Polarity
Bipolar

Temperature Grade
OTHER

Interface
Serial

Power Dissipation-Max
250mW

Nominal Supply Current
-25mA

Number of Bits
20

Converter Type
D/A CONVERTER

Supply Type
Dual

Sampling Rate
768 ksps

Settling Time
200 ns

Max Dual Supply Voltage
5.25V

Power Consumption
150mW

Integral Nonlinearity (INL)
0.5 LSB

Min Dual Supply Voltage
4.75V

Dual Supply Voltage
5V

Number of Converters
2

Conversion Rate
768 ksps

Signal to Noise Ratio (SNR)
120 dB

Negative Supply Voltage-Nom
-5V

Height
4.57mm

Length
19.3mm

Width
6.35mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI PCM1702P.

PCM1702P Overview

A PDIP package contains it, and it is available for download. Power is provided by a 5V-volt supply. An FPGA part from the Other Converters family. In total, there are a total of 16 terminations on it. This cable has 16 pins and is designed to connect to a computer. Providing the FPGA is mounted in Through Hole as per the specifications of the IC, then it should work perfectly according to its specifications. With a 5.25V supply voltage, designers can fully utili5.25Ve the flexibility of the device. A maximum operating temperature of 85°C can be reached by this module. Over -25°C should be the operating temperature. Featuring 16 pins in total, it is a versatile device.

PCM1702P Features

PDIP package
16 pin count
16 pins

PCM1702P Applications

There are a lot of Texas Instruments
PCM1702P Digital to Analog Converters (DAC) applications.

Software Radio
Wireless infrastructure:
WCDMA, CDMA2000, TD-SCDMA, WiMAX
Wideband communications:
LMDS/MMDS, point-to-point
Instrumentation:
RF signal generators, arbitrary waveform generators
Mobile Communications
Process Control and Industrial Automation
Automatic Test Equipment
