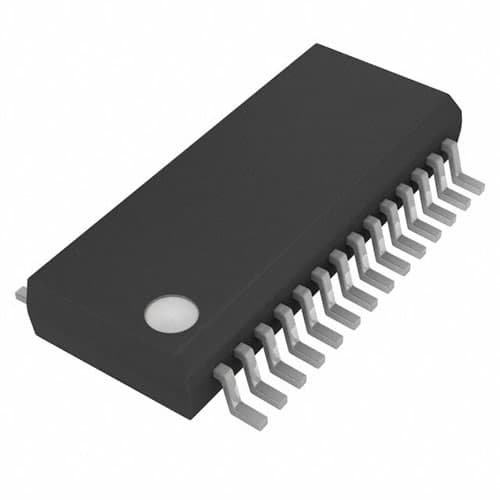

TI PCM1680DBQRG4

Manufacturer No:

PCM1680DBQRG4

Manufacturer:

Package:

SSOP

Description:

105 dB dB DAC Voltage 3 B B 3.9mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCM1680DBQRG4 information

TI PCM1680DBQRG4 technical specifications, attributes, parameters and parts with similar specifications to TI PCM1680DBQRG4.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
28

Weight
170.01209mg

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
70°C

Min Operating Temperature
-25°C

Subcategory
Other Converters

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.635mm

Pin Count
28

Output Type
Voltage

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Serial

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Power Dissipation-Max
605mW

Nominal Supply Current
106mA

Number of Bits
24

Converter Type
D/A CONVERTER

Supply Type
Analog, Digital

Resolution
3 B

Sampling Rate
192 ksps

Settling Time
0.2 µs

Power Consumption
530mW

Input Bit Code
2'S COMPLEMENT BINARY

Number of Converters
8

Conversion Rate
192 ksps

Signal to Noise Ratio (SNR)
105 dB

Length
9.9mm

Height Seated (Max)
1.75mm

Width
3.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI PCM1680DBQRG4.

PCM1680DBQRG4 Overview

In the package SSOP, this product is provided. Supply voltage is 5V volts. There is a Other Converters family component in this FPGA part. As a result of space limitations, this FPGA model has been included in Tape & Reel (TR). In total, the terminations of this piece are 28. The device has 28 pins which are included in the design. I think, as long as this FPGA is mounted in Surface Mount, it could perform excellently according to its specifications as long as you mount it in Surface Mount. In operation with 5V, designers can take advantage of its flexibility to the fullest extent. This is a battery operated device that operates on 5V. This module can reach a maximum operating temperature of 70°C when operating at its maximum power. It is necessary to maintain an operating temperature higher than -25°C. I am going to present you with a device that is equipped with 28 pins. The maximum supply voltage it can take is 5.25V. The device can function at a minimum voltage of 4.75V.

PCM1680DBQRG4 Features

SSOP package
28 pin count
28 pins

PCM1680DBQRG4 Applications

There are a lot of Texas Instruments
PCM1680DBQRG4 Digital to Analog Converters (DAC) applications.

Wireless infrastructure:
WCDMA, CDMA2000, TD-SCDMA, WiMAX
Wideband communications:
LMDS/MMDS, point-to-point
Instrumentation:
RF signal generators, arbitrary waveform generators
Mobile Communications
Process Control and Industrial Automation
Automatic Test Equipment
Portable Equipment
