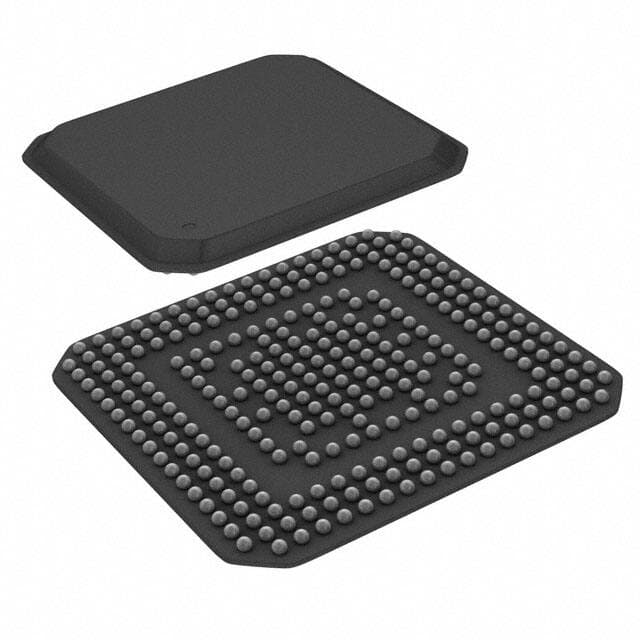

TI PCI7420GHK

Manufacturer No:

PCI7420GHK

Manufacturer:

Package:

288-LFBGA

Description:

3.3V 5V CMOS IEEE 1394a-2000, OHCI PCI Controllers Interface ICs BOTTOM PCI7420 288 Pins Controller 0.8mm 288-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCI7420GHK information

TI PCI7420GHK technical specifications, attributes, parameters and parts with similar specifications to TI PCI7420GHK.

Type
Parameter

Package / Case
288-LFBGA

Surface Mount
YES

Number of Pins
288

Packaging
Tray

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
288

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
REQUIRES AN EXTERNAL 24.576-MHZ CRYSTAL

HTS Code
8542.31.00.01

Technology
CMOS

Voltage - Supply
3.3V 5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PCI7420

Function
Controller

Qualification Status
Not Qualified

Protocol
PCI CardBus

Standards
IEEE 1394a-2000, OHCI

Bus Compatibility
CARDBUS; VGA

Data Transfer Rate-Max
132 MBps

Length
16mm

Height Seated (Max)
1.4mm

Width
16mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI PCI7420GHK.

Datasheets:

texasinstruments-pci7420zhk-datasheets-0557.pdf

PCI7420GHK Overview

The package 288-LFBGA contains it. Carrying is easy with the Tray-shaped packaging. The device should work as long as it is powered by a 3.3V 5VV power source. As a result, the 288 terminations are included in it. The supply voltage 1.8V allows for high efficiency. Numbers in the PCI7420 family begin with PCI7420. 288 pins are used to operate the device. In order for stable operation, the temperature must not exceed 70°C°C. For reliability, it must operate at a minimum temperature of 0°C degrees Celsius. You can also use this device to generate the number REQUIRES AN EXTERNAL 24.576-MHZ CRYSTAL.
