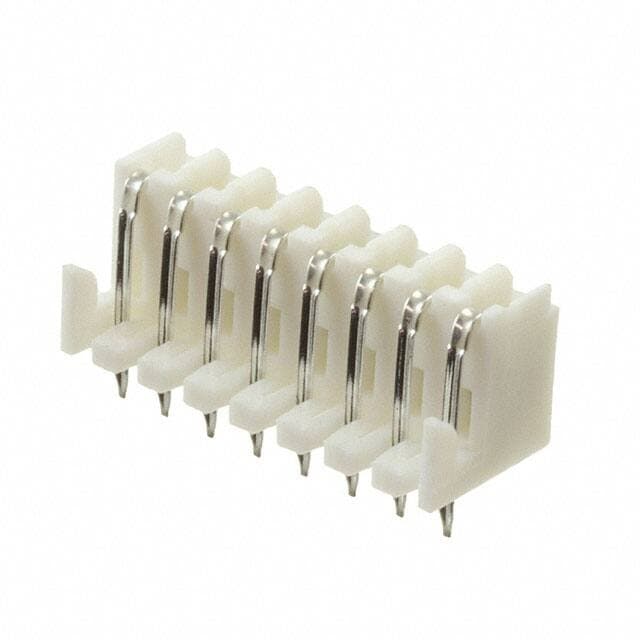

Adam Tech PCE-C-08

Manufacturer No:

PCE-C-08

Manufacturer:

Package:

Description:

1 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Through Hole Bulk Tin Polyamide (PA66), Nylon 6/6 8 Positions Non-Gendered

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCE-C-08 information

Adam Tech PCE-C-08 technical specifications, attributes, parameters and parts with similar specifications to Adam Tech PCE-C-08.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA66), Nylon 6/6

Mounting Option 1
LOCKING

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
PCE

Feature
Board Hooks

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Receptacle, Bottom Entry

Number of Positions
8

Applications
Automotive, General Purpose, Medical, Telecommunications

Number of Rows
1

Voltage - Rated
250VAC

Fastening Type
Push-Pull

Subcategory
Headers and Edge Type Connectors

Contact Finish - Mating
Tin

Contact Type
Non-Gendered

Current Rating (Amps)
3A

Terminal Pitch
2.54mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Natural

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Contact Length - Post
0.146 3.70mm

Number Of PCB Rows
1

PCB Contact Pattern
RECTANGULAR

Contact Gender
MALE

Polarization Key
POLARIZED HOUSING

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Adam Tech PCE-C-08.

PCE-C-08 Overview

Packaging is Receptacle, Bottom Entry.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the PCE Series, it can be found in this category.A possible application of the device would be Automotive, General Purpose, Medical, Telecommunications.With its Board Hooks feature, it is more powerful in many ways.The device is operating at -40°C~105°C Operating Temperature.

PCE-C-08 Features

PCE series

PCE-C-08 Applications

There are a lot of Adam Tech
PCE-C-08 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
