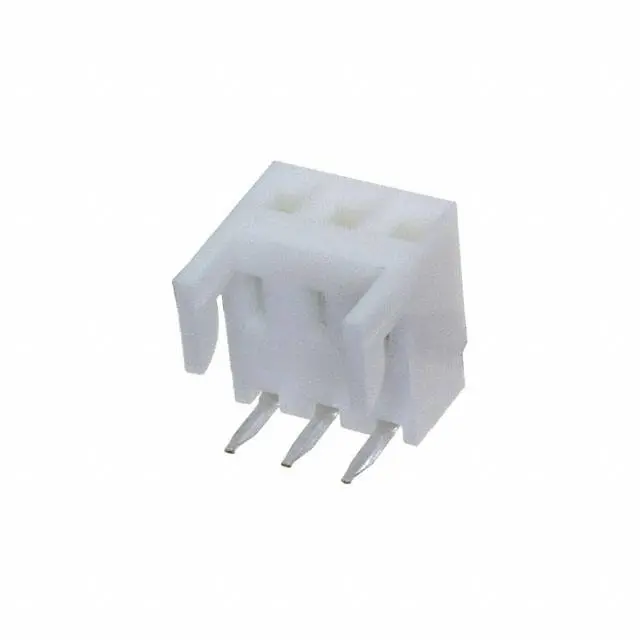

Adam Tech PCE-B-03

Manufacturer No:

PCE-B-03

Manufacturer:

Package:

Description:

1 Rows Receptacle Solder Phosphor Bronze Board Edge, Through Hole, Right Angle Bulk Tin Polyamide (PA), Nylon 3 Positions Non-Gendered

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCE-B-03 information

Adam Tech PCE-B-03 technical specifications, attributes, parameters and parts with similar specifications to Adam Tech PCE-B-03.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Board Edge, Through Hole, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA), Nylon

Mounting Option 1
LOCKING

Operating Temperature
0°C~75°C

Packaging
Bulk

Series
PCE

Feature
Board Hooks

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Receptacle

Number of Positions
3

Applications
Automotive, General Purpose, Medical, Telecommunications

Number of Rows
1

Voltage - Rated
250VAC

Fastening Type
Push-Pull

Subcategory
Headers and Edge Type Connectors

Contact Finish - Mating
Tin

Contact Type
Non-Gendered

Current Rating (Amps)
2.5A

Terminal Pitch
2.54mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
White

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Contact Length - Post
0.132 3.35mm

Number Of PCB Rows
1

PCB Contact Pattern
RECTANGULAR

Contact Gender
MALE

Polarization Key
POLARIZED HOUSING

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Adam Tech PCE-B-03.

PCE-B-03 Overview

Currently, it is packaged in Receptacle.Mounting type Board Edge, Through Hole, Right Angle is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the PCE Series, it is one of the most popular.The device could be used for Automotive, General Purpose, Medical, Telecommunications.A number of benefits can be derived from the Board Hooks feature of this application.0°C~75°C Operating Temperature is used by the device.

PCE-B-03 Features

PCE series

PCE-B-03 Applications

There are a lot of Adam Tech
PCE-B-03 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
