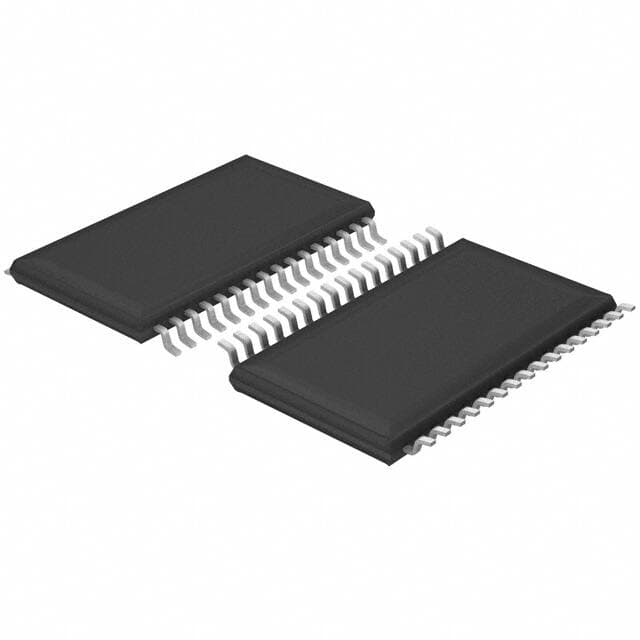

NXP PCA9622DR,118
NXP PCA9622DR,118

NXP PCA9622DR,118

Manufacturer No:

PCA9622DR,118

Manufacturer:

NXP

Package:

32-TSSOP (0.240, 6.10mm Width)

Description:

2.5/5V 0.65mm PMIC PCA9622 100kHz~1MHz 3.3V 32-TSSOP (0.240, 6.10mm Width)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCA9622DR,118 information

NXP PCA9622DR,118 technical specifications, attributes, parameters and parts with similar specifications to NXP PCA9622DR,118.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-TSSOP (0.240, 6.10mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2003
  • JESD-609 Code
  • e4
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 32
  • Type
  • Linear
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Applications
  • Backlight
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Frequency
  • 100kHz~1MHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • PCA9622
  • Pin Count
  • 32
  • Number of Outputs
  • 16
  • Qualification Status
  • Not Qualified
  • Power Supplies
  • 2.5/5V
  • Voltage - Output
  • 40V
  • Internal Switch(s)
  • Yes
  • fmax-Min
  • 1 MHz
  • Dimming
  • PWM
  • Number of Segments
  • 16
  • Voltage - Supply (Max)
  • 5.5V
  • Voltage - Supply (Min)
  • 2.3V
  • Multiplexed Display Capability
  • NO
  • Data Input Mode
  • SERIAL
  • Source Url Status Check Date
  • 2013-06-14 00:00:00
  • Length
  • 11mm
  • Height Seated (Max)
  • 1.1mm
  • Width
  • 6.1mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP PCA9622DR,118.

Datasheets:

Environmental Information:

PCN Packaging:

PCA9622DR,118 Overview


Using its 32-TSSOP (0.240, 6.10mm Width) package, it is possible to save board space. LED drivers design with 16 outputs.This mounting method is Surface Mount.The system emerges as a Linear with high efficiency.It is capable of working normally at -40°C~85°C TA.Backlight has considerable advantages.A frequency of 100kHz~1MHz is used to operate it.The operation of this system is supported by 32 terminations.It is possible that failures will occur if the voltage supply is below 2.3V.16 segments are present.The LED driver is available under the part number PCA9622.Its output voltage is 40V.The device has a pin count of 32.The voltage range of this device is optimized for a maximum supply voltage of 5.5V.

PCA9622DR,118 Features


Available in the 32-TSSOP (0.240, 6.10mm Width) package
Operating temperature of -40°C~85°C TA
Frequency of 100kHz~1MHz
Supply voltage of 3.3V


PCA9622DR,118 Applications


There are a lot of NXP USA Inc.
PCA9622DR,118 LED Driver ICs applications.


  • Gallery lighting
  • Museum lighting
  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
  • Panel lighting
  • Down lights
  • Linear fluorescent
  • A- lamps
  • General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
