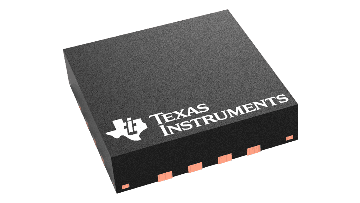

Texas Instruments PCA9557RGVRG4

Manufacturer No:

PCA9557RGVRG4

Manufacturer:

Texas Instruments

Package:

Description:

8-bit 2.3- to 5.5-V I2C/SMBus I/O expander with reset & config registers

Quantity:

In Stock :9236

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Thu, May 7 - Fri, May 8, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

PCA9557RGVRG4 Information

Texas Instruments PCA9557RGVRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments PCA9557RGVRG4.

Type
Parameter

Number of I/Os
8

Features
Configuration registers, Interrupt pin

Supply voltage (min) (V)
2.3

Supply voltage (max) (V)
5.5

Addresses
8

Rating
Catalog

Frequency (max) (MHz)
0.4

Operating temperature range (°C)
-40 to 85

Package
SOIC (D)

Pins
16

Type
Parameter

Size
59.4 mm² 9.9 x 6

Package
SSOP (DB)

Pins
16

Size
48.36 mm² 6.2 x 7.8

Package
TSSOP (PW)

Pins
16

Size
32 mm² 5 x 6.4

Package
TVSOP (DGV)

Pins
16

Size
23.04 mm² 3.6 x 6.4

Download datasheets and manufacturer documentation for Texas Instruments PCA9557RGVRG4.

This 8-bit I/O expander for the two-line bidirectional bus (I2C) is designed for 2.3V to 5.5V VCC operation. The device provides general-purpose remote I/O expansion for most microcontroller families through the I2C interface [serial clock (SCL) and serial data (SDA)].

The PCA9557 consists of one 8-bit configuration (input or output selection), input port, output port, and polarity inversion (active-high) registers. At power on, the I/Os are configured as inputs. However, the system controller can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding input or output register. The polarity of the input port register can be inverted with the polarity inversion register. All registers can be read by the system controller.

The device outputs (latched) have high-current drive capability for directly driving LEDs. The device has low current consumption.

The system controller can reset the PCA9557 in the event of a timeout or other improper operation by asserting a low in the active-low reset (RESET) input. The power-on reset puts the registers in their default state and initializes the I2C/SMBus state machine. Asserting RESET causes the same reset/initialization to occur without depowering the part.

Three hardware pins (A0, A1, and A2) are used to program and vary the fixed I2C address, allowing up to eight devices to share the same I2C bus or SMBus.

Low standby current consumption of 1µA maximum
I2C to parallel port expander
Operating power-supply voltage range of 2.3V to 5.5V
5V Tolerant I/O ports
400kHz Fast I2C bus
Three hardware address pins allow for use of up to eight devices on I2C/SMBus
Lower-voltage higher-performance migration path for PCA9556
Input and output configuration register
Polarity inversion register
Active-low reset input
Internal power-on reset
High-impedance open drain on P0
Power up with all channels configured as inputs
No glitch on power up
Noise filter on SCL or SDA inputs
Latched outputs with high current drive maximum capability for directly driving LEDs
Latch-up performance exceeds 100mA per JESD 78, class II
ESD protection exceeds JESD 22
- 2000V Human-body model (A114-A)
- 200V Machine model (A115-A)
- 1000V Charged-device model (C101)
