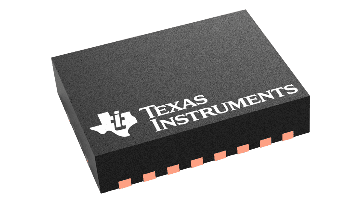

Texas Instruments PCA9544ARGYRG4

Manufacturer No:

PCA9544ARGYRG4

Manufacturer:

Texas Instruments

Package:

Description:

4-channel 2.3- to 5.5-V I2C/SMBus multiplexer with interrupt & voltage translation

Quantity:

In Stock :2721

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Thu, May 7 - Fri, May 8, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

PCA9544ARGYRG4 Information

Texas Instruments PCA9544ARGYRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments PCA9544ARGYRG4.

Type
Parameter

Addresses
8

Supply voltage (max) (V)
5.5

Supply voltage (min) (V)
2.3

Features
Interrupt pin

Rating
Catalog

Frequency (max) (MHz)
0.4

Operating temperature range (°C)
-40 to 85

Number of channels
4

Package
SOIC (DW)

Pins
20

Type
Parameter

Size
131.84 mm² 12.8 x 10.3

Package
TSSOP (PW)

Pins
20

Size
41.6 mm² 6.5 x 6.4

Package
TVSOP (DGV)

Pins
20

Size
32 mm² 5 x 6.4

Package
VQFN (RGY)

Pins
20

Size
15.75 mm² 4.5 x 3.5

Download datasheets and manufacturer documentation for Texas Instruments PCA9544ARGYRG4.

The PCA9544A is a 4-channel, bidirectional translating multiplexer controlled via the I²C bus. The SCL/SDA upstream pair fans out to four downstream pairs, or channels. One SCL/SDA pair can be selected at a time, and this is determined by the contents of the programmable control register. Four interrupt inputs ( INT3– INT0), one for each of the downstream pairs, are provided. One interrupt output ( INT) acts as an AND of the four interrupt inputs.

A power-on reset function puts the registers in their default state and initializes the I²C state machine, with no channel selected.

The pass gates of the switches are constructed such that the V_CC pin can be used to limit the maximum high voltage, which will be passed by the PCA9544A. This allows the use of different bus voltages on each pair, so that 1.8-V, 2.5-V, or 3.3-V parts can communicate with 5-V parts, without any additional protection. External pull-up resistors pull the bus up to the desired voltage level for each channel. All I/O pins are 5-V tolerant.

1-of-4 Bidirectional translating switches
I²C Bus and SMBus compatible
Four active-low interrupt inputs
Active-low interrupt output
Three address pins, allowing up to eight devices on the I²C Bus
Channel selection via I²C Bus
Power up with all switch channels deselected
Low R_ON switches
Allows voltage-level translation between 1.8-V, 2.5-V, 3.3-V, and 5-V Buses
No glitch on power up
Supports hot insertion
Low standby current
Operating power-supply voltage range of 2.3 V to 5.5 V
5.5-V Tolerant inputs
0 to 400-kHz Clock frequency
Latch-up performance exceeds 100 mA Per JESD 78
ESD Protection exceeds JESD 22
- 2000-V Human-body model (A114-A)
- 200-V Machine model (A115-A)
- 1000-V Charged-device model (C101)
