Taoglas Limited PC23.07.0100A

Manufacturer No:

PC23.07.0100A

Manufacturer:

Package:

Description:

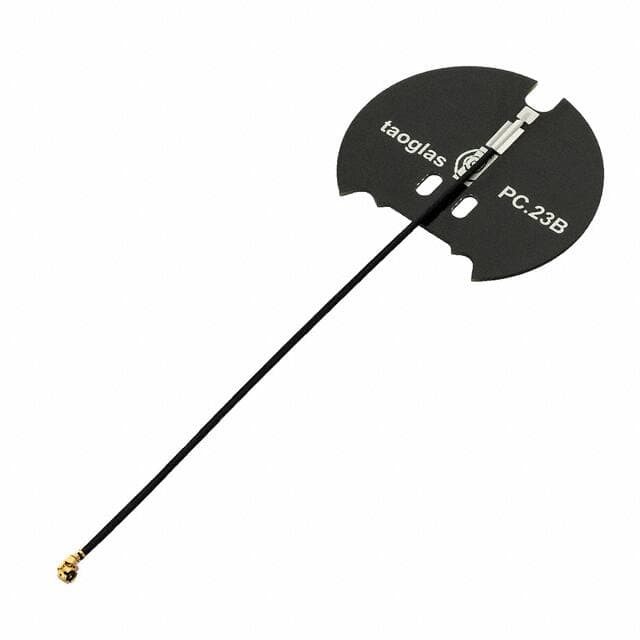

2 Bands Flat Patch UHF 300MHz~1GHz UHF 1GHz~2GHz Adhesive U.FL (UMCC), IPEX MHF1 892MHz 1.9GHz 0dBi Bulk 0.031 0.80mm GSM

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PC23.07.0100A information

Taoglas Limited PC23.07.0100A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited PC23.07.0100A.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
GSM

Power Rating
10W

Max Power Dissipation
10W

Frequency
1.9GHz

Impedance
50Ohm

Power - Max
10W

Gain
0dBi

Max Frequency
1.99GHz

Frequency Range
824MHz~960MHz 1.71GHz~1.99GHz

RF Family/Standard
Cellular

Antenna Type
Flat Patch

VSWR
2

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz UHF 1GHz~2GHz

Frequency (Center/Band)
892MHz 1.9GHz

Return Loss
-25dB, -12dB

Diameter
42mm

Length
1.6mm

Height (Max)
0.031 0.80mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited PC23.07.0100A.

PC23.07.0100A Overview

The Adhesive makes it ideal for general RF Antennas.Packaged in solid enclosures, this RF modulator has a Bulk rating.Having a Adhesive makes it suitable for most RF ic designs.

PC23.07.0100A Features

With Adhesive

PC23.07.0100A Applications

There are a lot of Taoglas Limited
PC23.07.0100A RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
