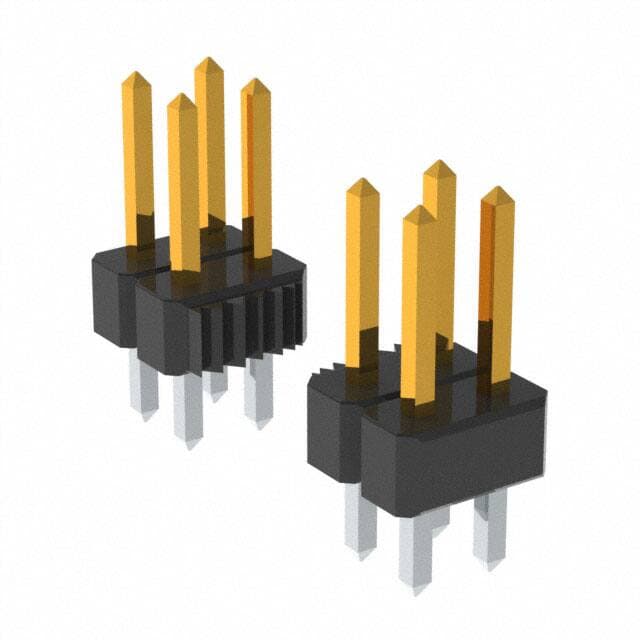

Sullins Connector Solutions PBC36DAAN
Sullins Connector Solutions PBC36DAAN

Sullins Connector Solutions PBC36DAAN

Manufacturer No:

PBC36DAAN

Manufacturer:

Sullins Connector Solutions

Package:

ROHS COMPLIANT

Description:

Board Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PBC36DAAN information

Sullins Connector Solutions PBC36DAAN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions PBC36DAAN.

  • Type
  • Parameter
  • Pbfree Code
  • Yes
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Package Description
  • ROHS COMPLIANT
  • Reach Compliance Code
  • compliant
  • Samacsys Manufacturer
  • Sullins
  • Body Breadth
  • 0.2 inch
  • Body Depth
  • 0.1 inch
  • Body Length
  • 3.6 inch
  • Connector Type
  • BOARD CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • MATTE TIN OVER NICKEL
  • Contact Gender
  • MALE
  • Contact Material
  • PHOSPHOR BRONZE
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 30 mΩ
  • Contact Style
  • SQ PIN-SKT
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • IEC Conformance
  • NO
  • Insulation Resistance
  • 5000000000 Ω
  • Insulator Color
  • BLACK
  • Insulator Material
  • POLYBUTYLENE TEREPHTHALATE
  • MIL Conformance
  • NO
  • Mating Contact Pitch
  • 0.1 inch
  • Mating Contact Row Spacing
  • 0.1 inch
  • Mixed Contacts
  • NO
  • Mounting Option 1
  • LOCKING
  • Mounting Style
  • STRAIGHT
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 2
  • Number of Rows Loaded
  • 2
  • Operating Temperature-Max
  • 125 °C
  • Operating Temperature-Min
  • -65 °C
  • Option
  • GENERAL PURPOSE
  • PCB Contact Pattern
  • RECTANGULAR
  • PCB Contact Row Spacing
  • 2.54 mm
  • Plating Thickness
  • 10u inch
  • Rated Current (Signal)
  • 3 A
  • Reference Standard
  • UL
  • Terminal Length
  • 0.12 inch
  • Terminal Pitch
  • 2.54 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 72
  • UL Flammability Code
  • 94V-0

Download datasheets and manufacturer documentation for Sullins Connector Solutions PBC36DAAN.

Datasheets:

Environmental Information:

PBC36DAAN Overview


This product is packaged in a Header, Breakaway box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.By Through Hole, the part is mounted.Operating temperature is set to -65°C~125°C.

PBC36DAAN Features




PBC36DAAN Applications


There are a lot of Sullins Connector Solutions
PBC36DAAN Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
