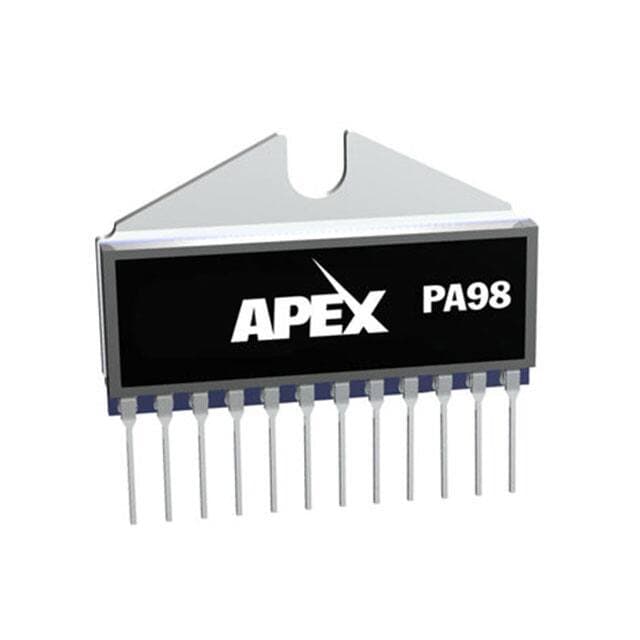

APEX PA98A

Manufacturer No:

PA98A

Manufacturer:

APEX

Package:

12-SIP

Description:

200mA per Channel 3pA 110 dB Instrumentational OP Amps 30V~450V ±15V~225V PA98 12 Pins 12-SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA98A information

APEX PA98A technical specifications, attributes, parameters and parts with similar specifications to APEX PA98A.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
12-SIP

Operating Temperature
-25°C~85°C

Packaging
Tube

Series
Apex Precision Power®

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Subcategory
Operational Amplifier

Technology
MOS

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
150V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA98

Pin Count
12

Qualification Status
Not Qualified

Number of Circuits
1

Supply Current-Max
25mA

Slew Rate
1000V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
110 dB

Current - Input Bias
3pA

Voltage - Supply, Single/Dual (±)
30V~450V ±15V~225V

Output Current per Channel
200mA

Input Offset Voltage (Vos)
250μV

Gain Bandwidth Product
100MHz

Neg Supply Voltage-Nom (Vsup)
-150V

Unity Gain BW-Nom
100000 kHz

Low-Offset
YES

Supply Voltage Limit-Max
225V

Low-Bias
YES

Micropower
NO

Programmable Power
NO

Neg Supply Voltage-Max (Vsup)
-225V

Wideband
YES

Power
YES

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA98A.

Datasheets:

apexmicrotechnology-ek16-datasheets-9989.pdf

apexmicrotechnology-pa98a-datasheets-3975.pdf

PA98A Overview

Op amp is packaged in 12-SIP case. Op amps are Power types of amplifier on the chip. Instrumentation amplifier is delivered in a Tube case. The number of terminations approaches 12. Linear amplifier has a total of 12 pins. Please take in mind that op amp should be run at 150V. Instrumentation amplifier is a part of Operational Amplifier. Regarding input offset voltage, buffer amplifier rates 250μV voltage. Through Hole is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -25°C~85°C. Operational amplifier can operate supply current at 21mA. There are 1 circuits on op amps. Apex Precision Power® corresponds to linear amplifier's series.
