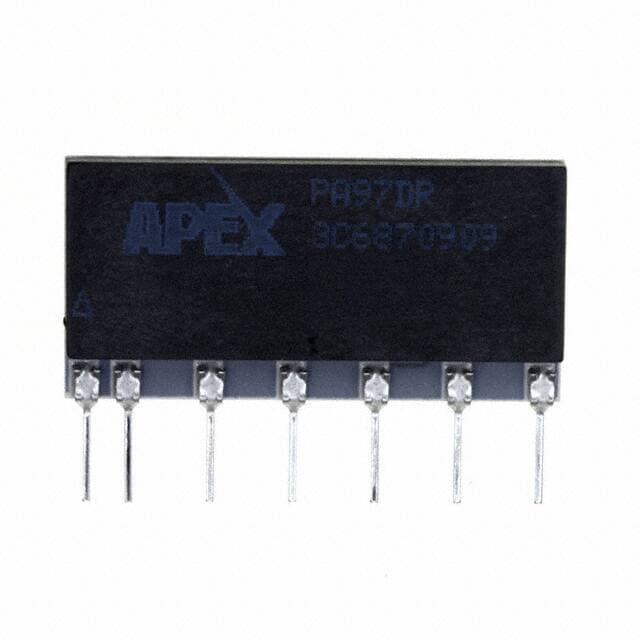

APEX PA97DR

Manufacturer No:

PA97DR

Manufacturer:

APEX

Package:

12-SIP, 7 Leads

Description:

10mA per Channel 200pA 98 dB Instrumentational OP Amps 0.002μA 100V~900V ±50V~450V PA97 7 Pins 12-SIP, 7 Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA97DR information

APEX PA97DR technical specifications, attributes, parameters and parts with similar specifications to APEX PA97DR.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
12-SIP, 7 Leads

Number of Pins
7

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
Apex Precision Power®

Published
2011

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
7

ECCN Code
EAR99

Subcategory
Operational Amplifier

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
300V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA97

Pin Count
7

Qualification Status
Not Qualified

Number of Circuits
1

Operating Supply Current
600μA

Amplifier Type
Power

Common Mode Rejection Ratio
98 dB

Current - Input Bias
200pA

Voltage - Supply, Single/Dual (±)
100V~900V ±50V~450V

Output Current per Channel
10mA

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-300V

Unity Gain BW-Nom
1000 kHz

Average Bias Current-Max (IIB)
0.002μA

Supply Voltage Limit-Max
450V

Neg Supply Voltage-Max (Vsup)
-450V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA97DR.

Datasheets:

apexmicrotechnology-pa97dr-datasheets-1958.pdf

PA97DR Overview

Packaged in a 12-SIP, 7 Leads case, the buffer op amp is ready to use. An op amp ic of the Power type. The op amp is delivered to you in a Bulk case. There is a growing number of terminations approaching the number of 7. The pins on this board total to 7 in total. I would like to remind you that this buffer op amp should be powered by an 300V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. A total of 7 pins are present on the instrumentation amplifier. There is an input offset voltage of 500μV for this buffer op amp. The mounting type that is recommended for this electrical part is Through Hole. In relation to the operating temperature of this buffer op amp, it works well at an average of -25°C~85°C . As long as the supply current of the chip does not exceed 600μA, this op amp ic can operate. During the manufacturing process, this buffer amplifier is divided into 1 circuits. As the name implies, Apex Precision Power® refers to the series of the buffer op amp.
