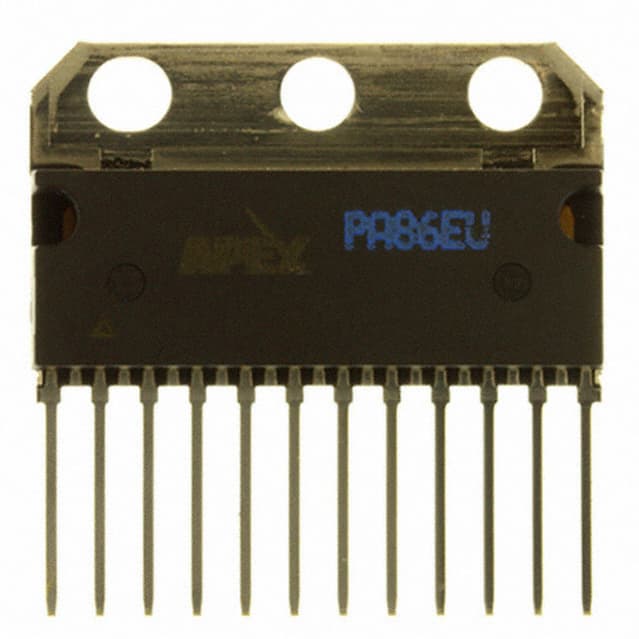

CIRRUS LOGIC PA86EU

Manufacturer No:

PA86EU

Manufacturer:

CIRRUS LOGIC

Package:

SIP

Description:

150mA per Channel 8.5pA 90 dB Instrumentational OP Amps 100V 12 Pins SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA86EU information

CIRRUS LOGIC PA86EU technical specifications, attributes, parameters and parts with similar specifications to CIRRUS LOGIC PA86EU.

Type
Parameter

Mount
Through Hole

Package / Case
SIP

Number of Pins
12

Published
2007

JESD-609 Code
e3

Part Status
Discontinued

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifiers

Technology
MOS

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
50V

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
12

Qualification Status
Not Qualified

Max Output Current
200mA

Operating Supply Voltage
100V

Power Supplies
+-50V

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
125V

Min Supply Voltage
10V

Operating Supply Current
700μA

Slew Rate
350 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
90 dB

Current - Input Bias
8.5pA

Output Current per Channel
150mA

Input Offset Voltage (Vos)
8mV

Bandwidth
200 kHz

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-50V

Unity Gain BW-Nom
1000 kHz

Voltage Gain
120dB

Low-Offset
NO

Frequency Compensation
NO

Max Dual Supply Voltage
125V

Low-Bias
YES

Micropower
NO

Min Dual Supply Voltage
10V

Programmable Power
NO

Power
YES

Download datasheets and manufacturer documentation for CIRRUS LOGIC PA86EU.

Datasheets:

cirruslogic-pa86eu-datasheets-8169.pdf

PA86EU Overview

Packaged in a SIP case, the buffer op amp is ready to use. An op amp ic of the OPERATIONAL AMPLIFIER type. The pins on this board total to 12 in total. I would like to remind you that this buffer op amp should be powered by an 50V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifiers-type of devices. A total of 12 pins are present on the instrumentation amplifier. There is an input offset voltage of 8mV for this buffer op amp. As long as the supply current of the chip does not exceed 700μA, this op amp ic can operate. 120dB should remain the voltage gain. During the manufacturing process, this buffer amplifier is divided into 2 circuits. For the buffer op amp to operate properly, it must be above the temperature of -40°C degrees Celsius. No temperature greater than 125°C should be used. The operating supply voltage of the buffer op amp is rated at 100V. In terms of the supply voltage, this electrical part is capable of operating at low voltage levels of under 125V. A high supply voltage of more than 10V is recommended for the instrumentation amplifier's supply voltage. As a rule of thumb, you should conduct this electronic part under a dual voltage supply of 125V volts. A total of 1 instrumentation amplifiers are present on the device.

PA86EU Features

12 Pins
supply voltage of 50V
120dB voltage gain

PA86EU Applications

There are a lot of Cirrus Logic
PA86EU Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
