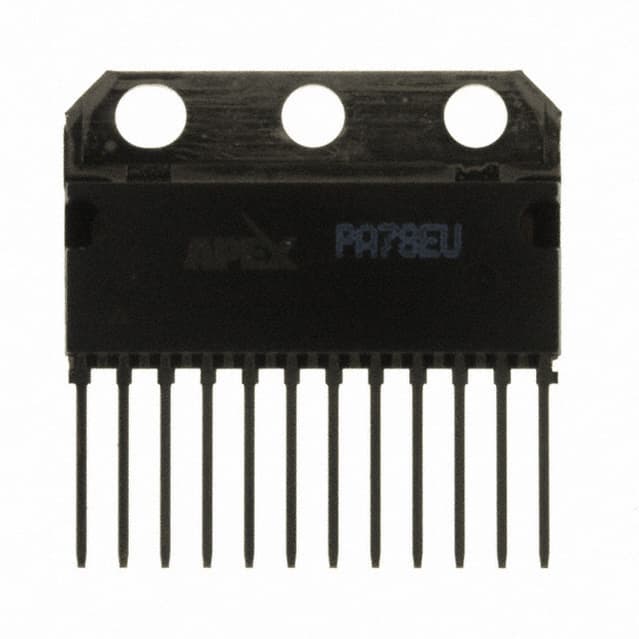

CIRRUS LOGIC PA78EU

Manufacturer No:

PA78EU

Manufacturer:

CIRRUS LOGIC

Package:

SIP

Description:

150mA per Channel 8.5pA 90 dB Instrumentational OP Amps 0.0002μA 12 Pins SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA78EU information

CIRRUS LOGIC PA78EU technical specifications, attributes, parameters and parts with similar specifications to CIRRUS LOGIC PA78EU.

Type
Parameter

Mount
Through Hole

Package / Case
SIP

Number of Pins
12

Published
2007

JESD-609 Code
e3

Part Status
Discontinued

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifiers

Technology
MOS

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
150V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
12

Qualification Status
Not Qualified

Max Output Current
200mA

Temperature Grade
AUTOMOTIVE

Number of Circuits
1

Min Supply Voltage
10V

Operating Supply Current
700μA

Supply Current-Max
2.5mA

Slew Rate
350 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
90 dB

Current - Input Bias
8.5pA

Output Current per Channel
150mA

Input Offset Voltage (Vos)
8mV

Bandwidth
200 kHz

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-150V

Unity Gain BW-Nom
1000 kHz

Voltage Gain
120dB

Average Bias Current-Max (IIB)
0.0002μA

Low-Offset
NO

Frequency Compensation
NO

Max Dual Supply Voltage
175V

Low-Bias
YES

Micropower
NO

Min Dual Supply Voltage
10V

Bias Current-Max (IIB) @25C
0.0002μA

Download datasheets and manufacturer documentation for CIRRUS LOGIC PA78EU.

Datasheets:

cirruslogic-pa78eu-datasheets-3494.pdf

cirruslogic-pa78eu-datasheets-6775.pdf

PA78EU Overview

There is a SIP case in which the instrumentation amplifier is packaged. Buffer amps of this type are called OPERATIONAL AMPLIFIER-types. The number of terminations is approaching the 12 mark. The total number of pins on linear amplifier is 12. The linear amplifier should be run at 150V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifiers devices. 12 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 8mV. It is possible to operate this buffer amplifier from a supply current of 700μA . 120dB should be the voltage gain. A linear amplifier like this has 1 circuits on it. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 125°C, Instrumentation amplifier should not be used. The electrical part is capable of being powered by a voltage of under 175V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 10V. As a general rule, you should conduct this electronic component under dual supply voltages of 175V volts.

PA78EU Features

12 Pins
supply voltage of 150V
120dB voltage gain

PA78EU Applications

There are a lot of Cirrus Logic
PA78EU Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
