CIRRUS LOGIC PA240CC

Manufacturer No:

PA240CC

Manufacturer:

CIRRUS LOGIC

Package:

TO-263-8

Description:

1 Channels 120mA per Channel 50pA 84 dB Instrumentational OP Amps 0.0002μA 7 Pins TO-263-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA240CC information

CIRRUS LOGIC PA240CC technical specifications, attributes, parameters and parts with similar specifications to CIRRUS LOGIC PA240CC.

Type
Parameter

Mount
Surface Mount

Package / Case
TO-263-8

Number of Pins
7

Published
2005

JESD-609 Code
e3

Part Status
Discontinued

Number of Terminations
7

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Subcategory
Operational Amplifier

Technology
MOS

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
150V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
7

Qualification Status
Not Qualified

Temperature Grade
AUTOMOTIVE

Number of Channels
1

Operating Supply Current
2.2mA

Slew Rate
40 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
84 dB

Current - Input Bias
50pA

Output Current per Channel
120mA

Input Offset Voltage (Vos)
25mV

Bandwidth
30 kHz

Gain Bandwidth Product
3MHz

Neg Supply Voltage-Nom (Vsup)
-150V

Unity Gain BW-Nom
3000 kHz

Voltage Gain
96dB

Average Bias Current-Max (IIB)
0.0002μA

Low-Offset
NO

Frequency Compensation
NO

Max Dual Supply Voltage
175V

Low-Bias
YES

Micropower
NO

Min Dual Supply Voltage
50V

Bias Current-Max (IIB) @25C
0.0002μA

Programmable Power
NO

Power
YES

Height Seated (Max)
4.82mm

Download datasheets and manufacturer documentation for CIRRUS LOGIC PA240CC.

Datasheets:

cirruslogic-pa240cc-datasheets-2366.pdf

PA240CC Overview

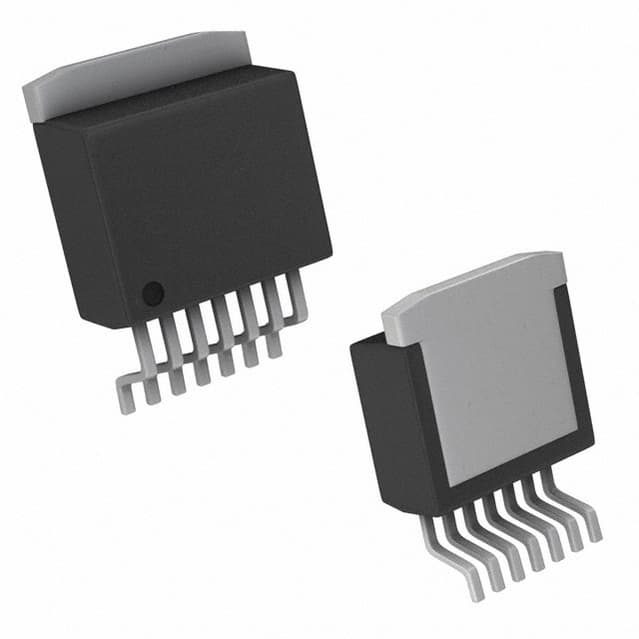

In the package, you will find a TO-263-8-case to contain the op amp ic. The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. During the past two weeks, there have been close to 7 terminations. A total of 7 pins are located on this board. This linear amplifier should be powered by an 150V battery. This particular linear amplifier is a type of Operational Amplifier device, to be precise. The op amp ic has an array of 7 pins on it. Op amp rates 25mV as input offset voltage. Using an 2.2mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 96dB for the time being. On the buffer amps, there are 1 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -25°C. A temperature greater than 85°C should not be used for the operation of buffer amplifier. This electrical part should be conducted under the dual supply voltage of 175V volts when you conduct this part.

PA240CC Features

7 Pins
supply voltage of 150V
96dB voltage gain

PA240CC Applications

There are a lot of Cirrus Logic
PA240CC Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
