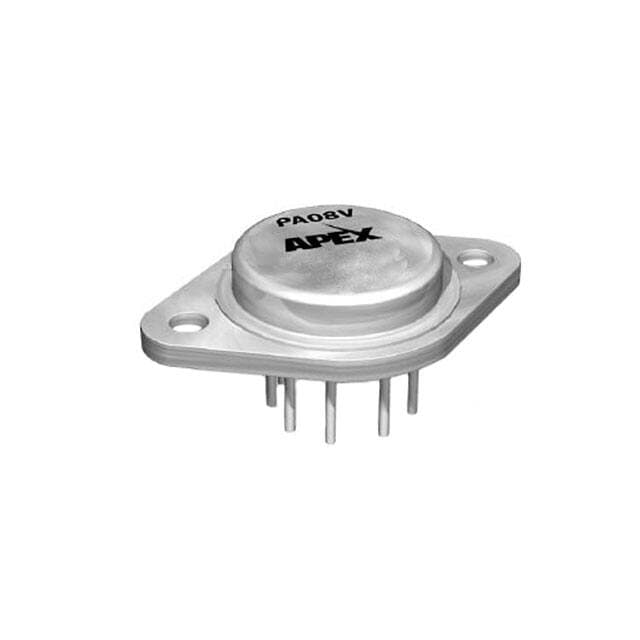

APEX PA08V

Manufacturer No:

PA08V

Manufacturer:

APEX

Package:

TO-3-8

Description:

150mA per Channel 5pA 130 dB Instrumentational OP Amps 0.00005μA 30V~300V ±15V~150V 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA08V information

APEX PA08V technical specifications, attributes, parameters and parts with similar specifications to APEX PA08V.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-25°C~85°C

Packaging
Bulk

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifiers

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
100V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
2

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Operating Supply Current
6mA

Supply Current-Max
8.5mA

Slew Rate
30V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
130 dB

Current - Input Bias
5pA

Voltage - Supply, Single/Dual (±)
30V~300V ±15V~150V

Output Current per Channel
150mA

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
5MHz

Neg Supply Voltage-Nom (Vsup)
-100V

Unity Gain BW-Nom
5000 kHz

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Micropower
NO

Bias Current-Max (IIB) @25C
0.00005μA

Programmable Power
NO

Wideband
NO

Power
YES

Voltage Gain-Min
63000

Download datasheets and manufacturer documentation for APEX PA08V.

Datasheets:

apexmicrotechnology-pa08v-datasheets-2582.pdf

PA08V Overview

There is a TO-3-8 case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the Power-type. Upon delivery, op amp ic is packaged in a Bulk case. We are approaching the 8h termination of the year. In total, there are 2 pins on this op amp ic. This linear amplifier should be powered by an 100V battery. There are two types of Operational Amplifiers op amps in this case, and this device falls into one of them. The input offset voltage is 500μV. This electrical part should be mounted using type Through Hole. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -25°C~85°C . The buffer amplifier is capable of operating from a supply current of 6mA . This op amp contains 1 circuits. This op amp ic is capable of conducting at least 63000 voltage gains.

PA08V Features

2 Pins
supply voltage of 100V

PA08V Applications

There are a lot of Apex Microtechnology
PA08V Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
