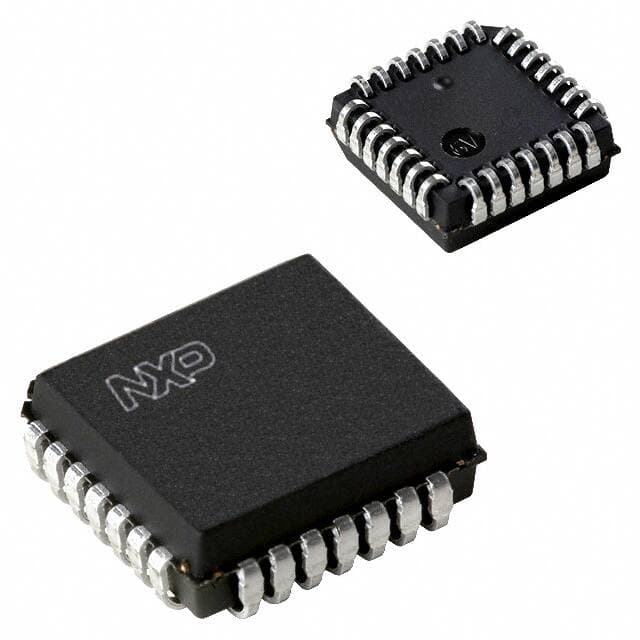

NXP P89LPC936FA,529
NXP P89LPC936FA,529

NXP P89LPC936FA,529

Manufacturer No:

P89LPC936FA,529

Manufacturer:

NXP

Package:

28-LCC (J-Lead)

Description:

16KB 16K x 8 FLASH 8051 8-Bit Microcontroller LPC900 Series P89LPC93* 3V 28-LCC (J-Lead)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

P89LPC936FA,529 information

NXP P89LPC936FA,529 technical specifications, attributes, parameters and parts with similar specifications to NXP P89LPC936FA,529.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 28-LCC (J-Lead)
  • Surface Mount
  • YES
  • Data Converters
  • A/D 8x8b; D/A 2x8b
  • Number of I/Os
  • 26
  • ROM(word)
  • 16384
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tube
  • Series
  • LPC900
  • Published
  • 2000
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 28
  • Terminal Finish
  • Matte Tin (Sn)
  • HTS Code
  • 8542.31.00.01
  • Terminal Position
  • QUAD
  • Terminal Form
  • J BEND
  • Peak Reflow Temperature (Cel)
  • 245
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 1.27mm
  • Reach Compliance Code
  • unknown
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 28
  • JESD-30 Code
  • S-PQCC-J28
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Power Supplies
  • 2.5/3.3V
  • Supply Voltage-Min (Vsup)
  • 2.4V
  • Oscillator Type
  • Internal
  • Speed
  • 18MHz
  • RAM Size
  • 768 x 8
  • Voltage - Supply (Vcc/Vdd)
  • 2.4V~3.6V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER
  • Core Processor
  • 8051
  • Peripherals
  • Brown-out Detect/Reset, LED, POR, PWM, WDT
  • Clock Frequency
  • 12MHz
  • Program Memory Type
  • FLASH
  • Core Size
  • 8-Bit
  • Program Memory Size
  • 16KB 16K x 8
  • Connectivity
  • I2C, SPI, UART/USART
  • Supply Current-Max
  • 23mA
  • Bit Size
  • 8
  • Has ADC
  • YES
  • DMA Channels
  • NO
  • PWM Channels
  • YES

Download datasheets and manufacturer documentation for NXP P89LPC936FA,529.

Datasheets:

PCN Obsolescence/ EOL:

P89LPC936FA,529 Overview


28-LCC (J-Lead)-packages are available. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the LPC900 series. This program memory has a size of 16KB 16K x 8, which indicates what the size of the program memory is. 8051 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 28 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 3V volts. There are NO DMA channels on this Microcontroller chip. The base part number P89LPC93* provides alternatives. Using the PWM channel YES, the device works with the motor. It has 28 pins in total. It's got a 12MHz clock.

P89LPC936FA,529 Features


28-LCC (J-Lead) package
Mounting type of Surface Mount


P89LPC936FA,529 Applications


There are a lot of NXP USA Inc.
P89LPC936FA,529 Microcontroller applications.


  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
  • Washing machine
  • Microwave ovens
  • Home appliances
  • Home video and audio

User Guide
