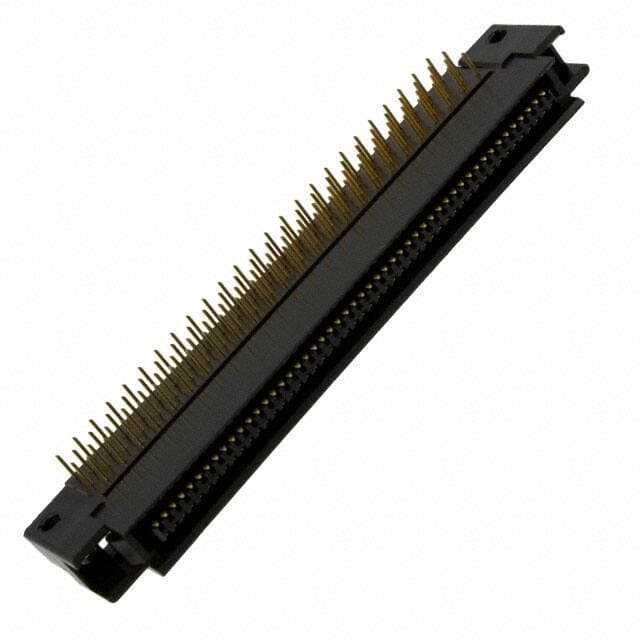

3M P50E-100P1-SR1-EA
3M P50E-100P1-SR1-EA

3M P50E-100P1-SR1-EA

Manufacturer No:

P50E-100P1-SR1-EA

Manufacturer:

3M

Package:

Description:

Pak 50, P50E Series 2-Row Plug Solder Copper Alloy Tube Through Hole, Right Angle Gold Polyamide (PA), Nylon, Glass Filled 100-Position Board to Board or Cable 0.276 7.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

P50E-100P1-SR1-EA information

3M P50E-100P1-SR1-EA technical specifications, attributes, parameters and parts with similar specifications to 3M P50E-100P1-SR1-EA.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Insulation Material
  • Polyamide (PA), Nylon, Glass Filled
  • Housing Material
  • Nylon
  • Operating Temperature
  • -55°C~85°C
  • Packaging
  • Tube
  • Series
  • Pak 50, P50E
  • Published
  • 2004
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Plug
  • Number of Positions
  • 100
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Latch Holder
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Center Strip Contact
  • Pitch
  • 1.27mm
  • Orientation
  • Right Angle
  • Insulation Height
  • 0.276 7.00mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 500mA
  • Pitch - Mating
  • 0.050 1.27mm
  • Insulation Color
  • Black
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number of Contacts
  • 100
  • Contact Finish - Post
  • Gold
  • Contact Gender
  • Male
  • Contact Finish Thickness - Mating
  • 10.0?in 0.25?m
  • Contact Finish Thickness - Post
  • Flash
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for 3M P50E-100P1-SR1-EA.

Datasheets:

ConflictMineralStatement:

P50E-100P1-SR1-EA Overview


Packaging is in the form of Plug.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Pak 50, P50E Series.If the temperature is below 85°C, it's best to use it.-55°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -55°C~85°C operating temperatures.

P50E-100P1-SR1-EA Features


Pak 50, P50E series


P50E-100P1-SR1-EA Applications


There are a lot of 3M
P50E-100P1-SR1-EA Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
