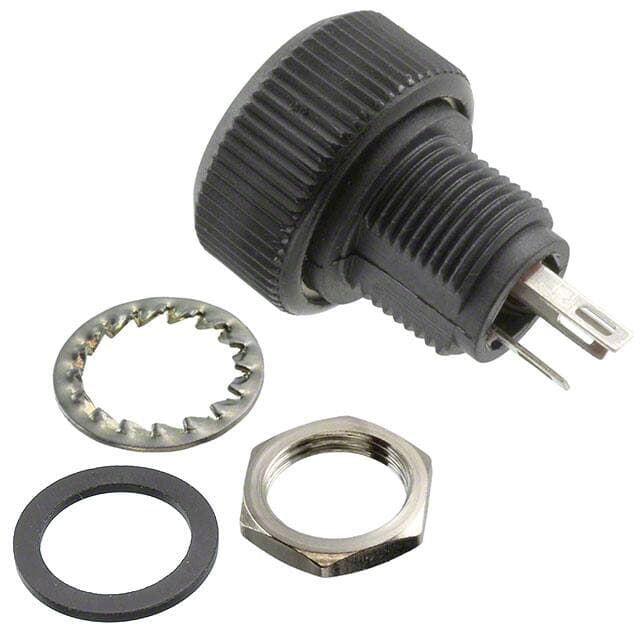

VISHAY P16NP102MAB15

Manufacturer No:

P16NP102MAB15

Manufacturer:

VISHAY

Package:

Panel Mount,

Description:

RESISTOR, POTENTIOMETER, CERMET, 1 TURN(S), 1 W, 1000 ohm, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

P16NP102MAB15 information

VISHAY P16NP102MAB15 technical specifications, attributes, parameters and parts with similar specifications to VISHAY P16NP102MAB15.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
VISHAY INTERTECHNOLOGY INC

Package Description
Panel Mount,

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8533.40.80.50

Samacsys Manufacturer
Vishay

Actuator Orientation
HORIZONTAL

Actuator Type
KNOB

Additional Feature
STANDARD: IEC60393-1

Construction
Sealed

Ganging Number
1

JESD-609 Code
e3

Mounting Feature
PANEL MOUNT

Number of Terminals
3

Number of Turns
1

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Diameter
16 mm

Package Length
9.6 mm

Package Shape
CIRCULAR PACKAGE

Package Style
Panel Mount

Packing Method
Bulk

Rated Temperature
40 °C

Reference Standard
CECC41000

Resistance
1000 Ω

Resistance Law
LINEAR

Resistor Type
POTENTIOMETER

Rotational Angle
270 deg

Surface Mount
NO

Technology
CERMET

Temperature Coefficient
150 ppm/°C

Terminal Finish
Matte Tin (Sn)

Terminal Shape
LUG

Tolerance
20%

Working Voltage
31.6 V

Download datasheets and manufacturer documentation for VISHAY P16NP102MAB15.

Datasheets:

VISH-S-A0020332125-1.pdf

No product details available
