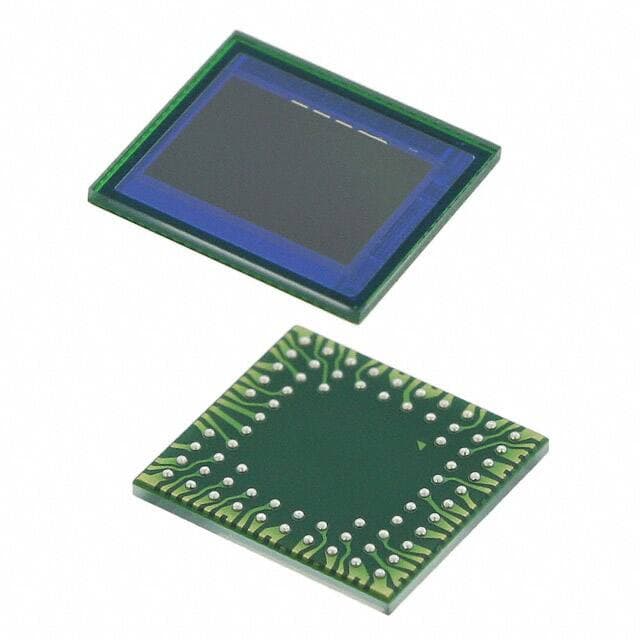

omnivision OV09810-A70A

Manufacturer No:

OV09810-A70A

Manufacturer:

omnivision

Package:

LGA

Description:

CMOS with Processor 1.75?mx1.75?m 3 (168 Hours) 3488H x 2616V 8.9 Frames per Second LGA 2.8V -30°C~70°C TA Tray

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

OV09810-A70A information

omnivision OV09810-A70A technical specifications, attributes, parameters and parts with similar specifications to omnivision OV09810-A70A.

Type
Parameter

Mount
Surface Mount

Package / Case
LGA

Number of Pins
3

Operating Temperature
-30°C~70°C TA

Packaging
Tray

Series
OmniPixel3-HS?

Published
2009

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Type
CMOS with Processor

Voltage - Supply
2.8V

Reach Compliance Code
unknown

Frames per Second
8.9

Pixel Size
1.75?mx1.75?m

Active Pixel Array
3488H x 2616V

Length
8.2mm

Width
7.535mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for omnivision OV09810-A70A.

Datasheets:

omnivisiontechnologiesinc-ov09810a70a-datasheets-3472.pdf

OV09810-A70A Overview

Safety reasons require that image sensors be packaged in LGA packages. Ideally, the image sensors should provide a voltage of 2.8V. These image sensors will be packaged in the Tray so they don't get damaged. In the image sensor, there are 3 pins.

OV09810-A70A Features

Moisture Sensitivity Level (MSL): 3 (168 Hours)
Pixel Size: 1.75?mx1.75?m
Active Pixel Array: 3488H x 2616V
Operating Temperature: -30°C~70°C TA
Mount: Surface Mount
OmniPixel3-HS? Series

OV09810-A70A Applications

There are a lot of OmniVision Technologies Inc
OV09810-A70A Image Sensors applications.

Low cost seating position detection in cars
Gesture control (man-machine interface)
Embedded Notebook,
Mobile Devices
Tethered PC Cameras
Game Consoles
Cell Phones
Consumer Video Communications
Surveillance Applications
Desktop Monitor cameras
