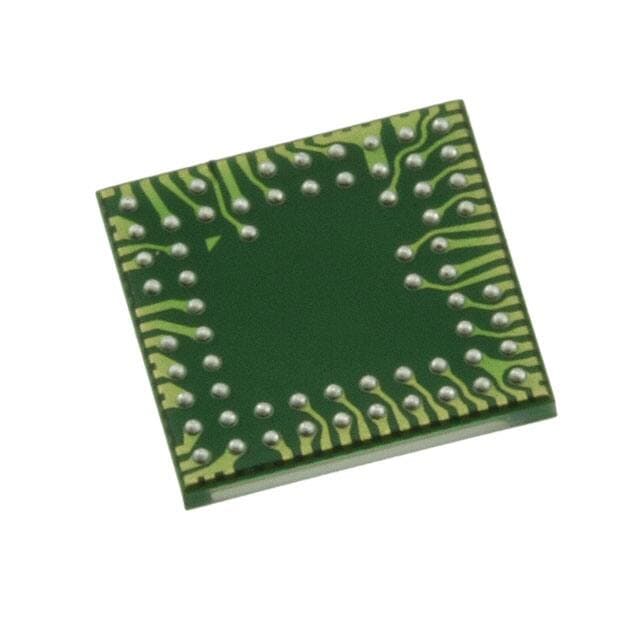

omnivision OV05642-A63A

Manufacturer No:

OV05642-A63A

Manufacturer:

omnivision

Package:

63-CSP3

Description:

CMOS with Processor 1.4?mx1.4?m 2 (1 Year) 2592H x 1944V 15 Frames per Second 63-CSP3 2.8V -30°C~70°C TA Tray 68 dB

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

OV05642-A63A information

omnivision OV05642-A63A technical specifications, attributes, parameters and parts with similar specifications to omnivision OV05642-A63A.

Type
Parameter

Mount
Surface Mount

Package / Case
63-CSP3

Number of Pins
3

Operating Temperature
-30°C~70°C TA

Packaging
Tray

Series
OmniBSI?, TrueFocus?

Published
2009

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Type
CMOS with Processor

Additional Feature
ROLLING SHUTTER

Voltage - Supply
2.8V

Reach Compliance Code
unknown

Frames per Second
15

Pixel Size
1.4?mx1.4?m

Active Pixel Array
2592H x 1944V

Dynamic Range
68 dB

Optical Format
1/4 inch

Sensitivity (V/lx.s)
0.68 V/lx.s

Length
6.95mm

Width
6.695mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for omnivision OV05642-A63A.

Datasheets:

omnivisiontechnologiesinc-ov05642a63a-datasheets-3354.pdf

OV05642-A63A Overview

Safety precautions are taken by packaging the image sensors in 63-CSP3 packages. 2.8V should be the supply voltage for the image sensors. The image sensors will be packaged in the Tray to protect them. There should be a dynamic range of 68 dB on the image sensor. It is specified that the image sensor has an optical format of 1/4 inch. Image sensors have 3 pins.

OV05642-A63A Features

Moisture Sensitivity Level (MSL): 2 (1 Year)
Pixel Size: 1.4?mx1.4?m
Active Pixel Array: 2592H x 1944V
Operating Temperature: -30°C~70°C TA
Mount: Surface Mount
OmniBSI?, TrueFocus? Series

OV05642-A63A Applications

There are a lot of OmniVision Technologies Inc
OV05642-A63A Image Sensors applications.

People and object counting
Door opening, machine controlling and safeguarding
Volumetric mapping of objects
Automatic vehicle guidance
Low cost seating position detection in cars
Gesture control (man-machine interface)
Embedded Notebook,
Mobile Devices
Tethered PC Cameras
Game Consoles
