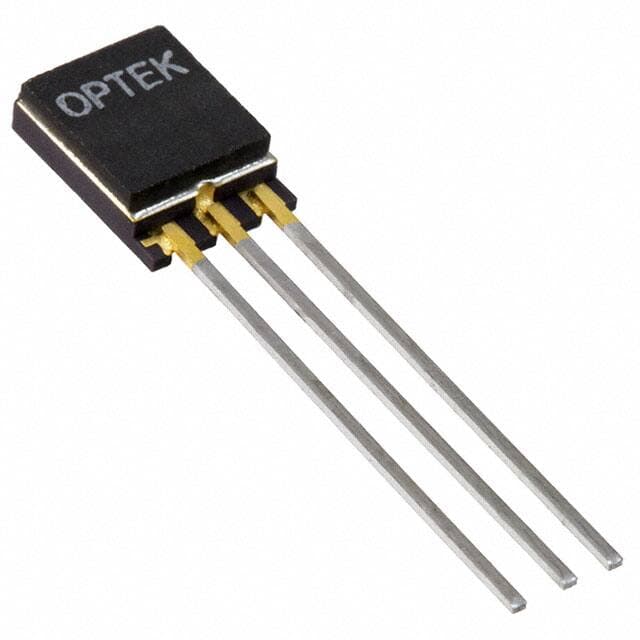

TT Electronics OMH3075B

Manufacturer No:

OMH3075B

Manufacturer:

TT Electronics

Package:

3-SSIP

Description:

Open Collector 4.5V~24V -55°C~125°C TA Latch South Pole 27.5mT Trip, -27.5mT Release 11mA-Supply (Max) 25mA-Output (Max) 3-SSIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

OMH3075B information

TT Electronics OMH3075B technical specifications, attributes, parameters and parts with similar specifications to TT Electronics OMH3075B.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
3-SSIP

Number of Pins
3

Supplier Device Package
TO-92-3

Operating Temperature
-55°C~125°C TA

Packaging
Bulk

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Technology
Hall Effect

Voltage - Supply
4.5V~24V

Function
Latch

Current - Supply (Max)
11mA

Output Type
Open Collector

Max Output Current
25mA

Operating Supply Voltage
12V

Polarity
South Pole

Max Supply Voltage
24V

Min Supply Voltage
4.5V

Operating Supply Current
7mA

Current - Output (Max)
25mA

Output Current
25mA

Max Supply Current
11mA

Logic Function
Latch

Sensing Method
Hall Effect

Test Condition
-55°C ~ 125°C

Max Supply Voltage (DC)
24V

Min Supply Voltage (DC)
4.5V

Sensing Range
27.5mT Trip, -27.5mT Release

REACH SVHC
Unknown

Radiation Hardening
Yes

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TT Electronics OMH3075B.

Datasheets:

ttelectronicsoptektechnology-omh3040b-datasheets-9382.pdf

OMH3075B Overview

It is protected against damage by being packaged in a Bulk. In order to protect the switches from damage, they are packaged in 3-SSIP packages. In order to achieve good performance, the magnetic switches should be able to supply 11mA as the maximum current. When these switches are working, 25mA is the maximum current they can output. It is recommended that magnetic switches should have a maximum output current of 25mA. It is possible for these switches to supply a maximum current of 11mA. 3 pins are used to operate the switches. Generally, switches should output 25mA current. The magnetic switches can operate at 125°C. To function properly, this magnetic switch needs an operating temperature greater than -55°C. It is possible for the magnetic switches to provide a voltage of 12V. Voltages up to 24V are possible with this electronic component. It is possible to supply 4.5V as the minimum voltage through these switches.

OMH3075B Features

Packaging: Bulk
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 4.5V~24V
Operating Temperature: -55°C~125°C TA
Mounting Type: Through Hole
3 Pins
Output Type: Open Collector
Maximum Supply Current: 11mA

OMH3075B Applications

There are a lot of TT Electronics/Optek Technology
OMH3075B Magnetic Switches applications.

Brushless DC (direct current) motor commutation
Motor and fan control
Robotics control
Electric window lift
Convertible roof position
Motor assemblies
Medication dispensing control
Security and military applications
Detection of ferromagnetic
Discrimination of ferromagnetic
