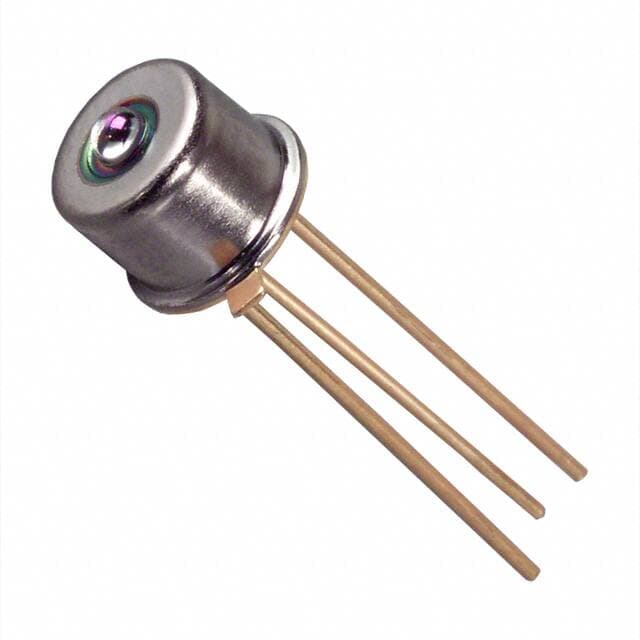

Lumex Opto/Components Inc. OED-PPD11075G-B
Lumex Opto/Components Inc. OED-PPD11075G-B

Lumex Opto/Components Inc. OED-PPD11075G-B

Manufacturer No:

OED-PPD11075G-B

Manufacturer:

Lumex Opto/Components Inc.

Package:

Description:

Through Hole -40°C~85°C Bulk Wavelength: 1310nm 25V 0.31mm2 300pA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

OED-PPD11075G-B information

Lumex Opto/Components Inc. OED-PPD11075G-B technical specifications, attributes, parameters and parts with similar specifications to Lumex Opto/Components Inc. OED-PPD11075G-B.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Shape
  • ROUND
  • Semiconductor Material
  • InGaAs
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Published
  • 1999
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • HTS Code
  • 8541.40.60.50
  • Subcategory
  • Photo Diodes
  • Number of Functions
  • 1
  • Configuration
  • SINGLE
  • Optoelectronic Device Type
  • PIN PHOTODIODE
  • Voltage - DC Reverse (Vr) (Max)
  • 25V
  • Size
  • 1.3mm
  • Rise Time
  • 300ps
  • Max Reverse Voltage (DC)
  • 25V
  • Wavelength
  • 1310nm
  • Dark Current
  • 300pA
  • Spectral Range
  • 1100nm ~ 1600nm
  • Active Area
  • 0.31mm2
  • Infrared Range
  • YES
  • Light Current-Nom
  • 2mA
  • Diameter
  • 5.35mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Lumex Opto/Components Inc. OED-PPD11075G-B.

Datasheets:

OED-PPD11075G-B Overview


These photodiodes are packaged in the Bulk to protect them from damage. In reverse-bias mode on a continual basis, the maximum amount of voltage the photodiodes can withstand is 25V. The voltage for the photodiodes should not exceed 25V in reverse-bias mode on a continual basis. Even in the absence of light input, a photodiode occurs 300pA current.

OED-PPD11075G-B Features


Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 1100nm ~ 1600nm
Responsivity @ nm: 0.9 A/W @ 1310nm


OED-PPD11075G-B Applications


There are a lot of Lumex Opto/Components Inc.
OED-PPD11075G-B Photodiodes applications.


  • High speed photo detector
  • Infrared remote control
  • Infrared data transmission
  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
