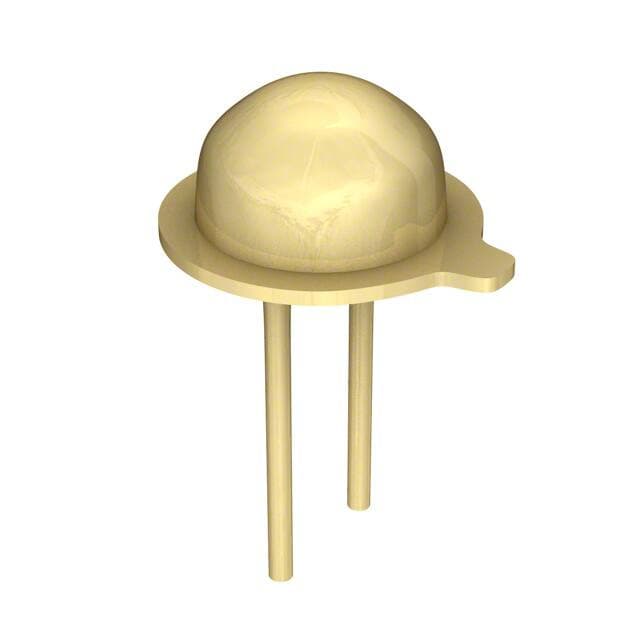

Opto Diode Corp ODD-1

Manufacturer No:

ODD-1

Manufacturer:

Opto Diode Corp

Package:

Description:

Through Hole -55°C~100°C Bulk Wavelength: 940nm 60V 1mm2 200pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ODD-1 information

Opto Diode Corp ODD-1 technical specifications, attributes, parameters and parts with similar specifications to Opto Diode Corp ODD-1.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Shape
ROUND

Operating Temperature
-55°C~100°C

Packaging
Bulk

Series
Visible

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Functions
1

Reach Compliance Code
unknown

Configuration
SINGLE

Voltage - DC Reverse (Vr) (Max)
60V

Size
1mm

Max Reverse Voltage (DC)
60V

Wavelength
940nm

Dark Current
200pA

Spectral Range
400nm ~ 1100nm

Active Area
1mm2

Color - Enhanced
Red

Responsivity @ nm
0.4 A/W @ 632nm

Reverse Breakdown Voltage-Min
25V

Download datasheets and manufacturer documentation for Opto Diode Corp ODD-1.

ODD-1 Overview

To protect the photodiodes, they are packed in the Bulk. When reverse-bias is applied continuously, the photodiodes are able to withstand only 60V voltage. A reverse-bias photodiode shouldn't exceed 60V continuously in reverse-bias mode. A photodiode occurs even at 200pA current without light input.

ODD-1 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -55°C~100°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 400nm ~ 1100nm
Responsivity @ nm: 0.4 A/W @ 632nm

ODD-1 Applications

There are a lot of Opto Diode Corp
ODD-1 Photodiodes applications.

Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
Optical Analytics
