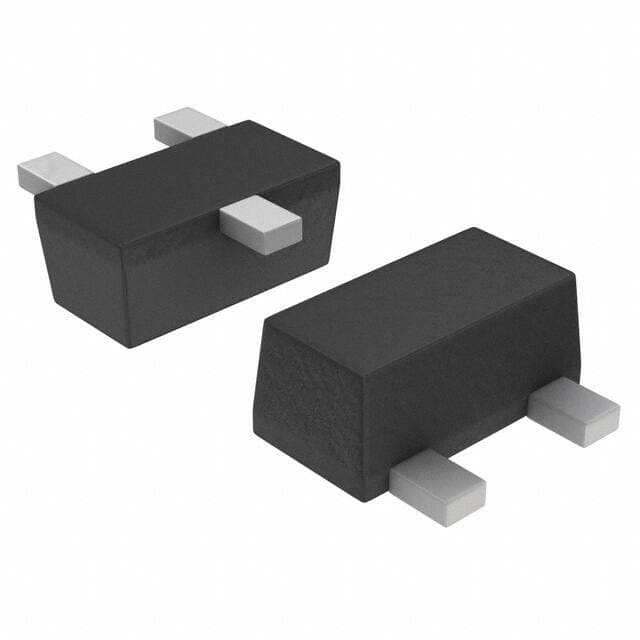

ONSEMI NZL7V5AXV3T1

Manufacturer No:

NZL7V5AXV3T1

Manufacturer:

ONSEMI

Package:

SC-89, SOT-490

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NZL7V5AXV3T1 information

ONSEMI NZL7V5AXV3T1 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NZL7V5AXV3T1.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
SC-89, SOT-490

Surface Mount
YES

Number of Pins
3

Diode Element Material
SILICON

Operating Temperature
-55°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Type
Zener

Terminal Finish
Tin (Sn)

Applications
General Purpose

HTS Code
8541.10.00.50

Subcategory
Voltage Reference Diodes

Power Rating
240mW

Voltage - Rated DC
7.5V

Terminal Position
DUAL

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
260

Depth
850?m

Base Part Number
NZL*AXV3

Pin Count
3

Number of Elements
2

Working Voltage
5V

Leakage Current
1?A

Power Line Protection
No

Voltage - Breakdown (Min)
7.12V

Current - Peak Pulse (10/1000?s)
13.5A 8/20?s

Clamping Voltage
8.8V

Peak Pulse Current
13.5A

Reverse Standoff Voltage
5V

Peak Pulse Power
75W

Direction
Unidirectional

Reference Voltage
7.5V

Breakdown Voltage
7.5V

Voltage Tol-Max
5%

Rep Pk Reverse Voltage-Max
5V

Working Test Current
5mA

Number of Unidirectional Channels
2

Dynamic Impedance-Max
15Ohm

Length
1.6mm

Width
850?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI NZL7V5AXV3T1.
