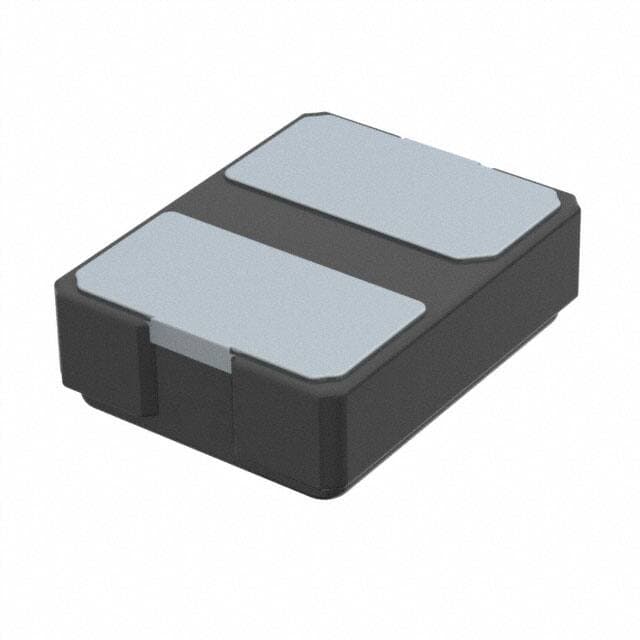

NDK NX3225GD-8MHZ-STD-CRA-3

Manufacturer No:

NX3225GD-8MHZ-STD-CRA-3

Manufacturer:

NDK

Package:

2-SMD, No Lead

Description:

CRYSTAL 8.0000MHZ 8PF SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NX3225GD-8MHZ-STD-CRA-3 information

NDK NX3225GD-8MHZ-STD-CRA-3 technical specifications, attributes, parameters and parts with similar specifications to NDK NX3225GD-8MHZ-STD-CRA-3.

Type
Parameter

Mfr
NDK America, Inc.

Series
NX3225GD

Package
Tape & Reel (TR),Digi-Reel®,Cut Tape (CT)

Product Status
Active

Type
MHz Crystal

Frequency
8 MHz

Frequency Stability
±150ppm

Frequency Tolerance
±50ppm

Load Capacitance
8pF

ESR (Equivalent Series Resistance)
500 Ohms

Operating Mode
Fundamental

Operating Temperature
-40°C ~ 150°C

Ratings
AEC-Q200

Mounting Type
Surface Mount

Package / Case
2-SMD, No Lead

Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)
0.039" (1.00mm)

Download datasheets and manufacturer documentation for NDK NX3225GD-8MHZ-STD-CRA-3.

NX3225GD-8MHZ-STD-CRA-3 Description

The NX3225GD-8MHZ-STD-CRA-3 is a Crystal Unit. High-stability piezoelectric quartz crystal is used to create the crystal units, which serve as mechanical resonators.

To achieve high stability, adjustment-free performance, and compactness, crystal units can produce clock signals, which are necessary for ICs and LSIs to operate.

Currently, crystal units are used in a wide variety of products, including communication satellites, mobile phones, TVs, personal computers, automobile electronics, and home entertainment systems like DVD players.

NX3225GD-8MHZ-STD-CRA-3 Features

A small surface-mount type crystal unit, ideal for an engine control CPU clock; delivering the high reliability that is particularly demanded by automotive.

Compatible with low frequency range starting from 7.98 MHz.

Excellent environment-resistant performance, including heat, vibration and shock resistance.
Meets the requirements for re-flow profiling using lead-free solder.
Conforms to AEC-Q200.
Compact and thin. (3.2x2.5mm typ., t1.0mm max.)
High resistance to solder cracking.
Stable start-up characteristics even under extremely severe environmental conditions.

NX3225GD-8MHZ-STD-CRA-3 Applications

Automotive
Communication satellites
Mobile communication devices
Automotive electronics
TVs
Personal computing and home information appliances
