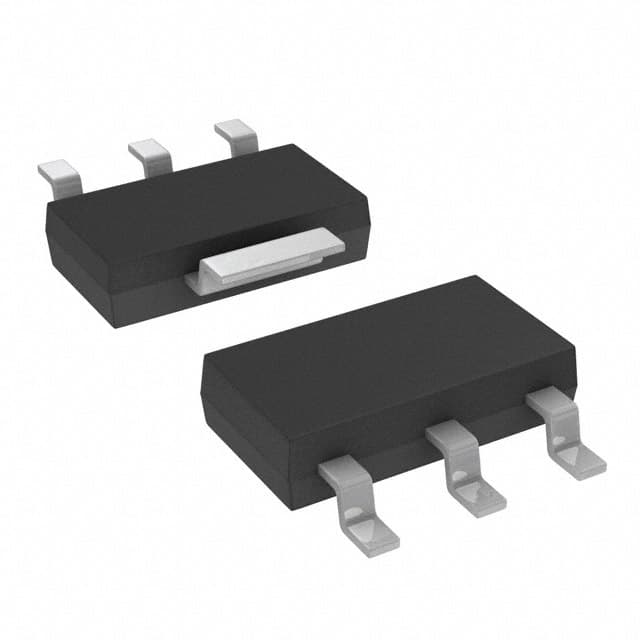

NXP NX1117C18Z,115

Manufacturer No:

NX1117C18Z,115

Manufacturer:

NXP

Package:

TO-261-4, TO-261AA

Description:

Fixed NX1117C PMIC TO-261-4, TO-261AA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NX1117C18Z,115 information

NXP NX1117C18Z,115 technical specifications, attributes, parameters and parts with similar specifications to NXP NX1117C18Z,115.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
TO-261-4, TO-261AA

Surface Mount
YES

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Terminal Finish
Tin (Sn)

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
BIPOLAR

Base Part Number
NX1117C

Number of Outputs
1

Qualification Status
Not Qualified

Voltage - Input (Max)
20V

Output Type
Fixed

Output Configuration
Positive

Current - Output
1A

Output Voltage 1
1.8V

Voltage - Output (Min/Fixed)
1.8V

Number of Regulators
1

Current - Quiescent (Iq)
6mA

Voltage Dropout (Max)
1.2V @ 800mA

PSRR
68dB (120Hz)

Dropout Voltage1-Nom
1.07V

Voltage Tolerance-Max
2%

Input Voltage Absolute-Max
20V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP NX1117C18Z,115.

NX1117C18Z,115 Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in TO-261-4, TO-261AA case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1A from this regulator IC. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. For your information, the basic part number for this regulator IC is NX1117C. In this case, we have a typical Other Regulators component. TAPE AND REEL is the way in which the voltage regulator IC is packed.

NX1117C18Z,115 Features

Other Regulators subtageroy
TAPE AND REEL method of packing

NX1117C18Z,115 Applications

There are a lot of NXP USA Inc.
NX1117C18Z,115 Linear Voltage Regulators applications.

Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
