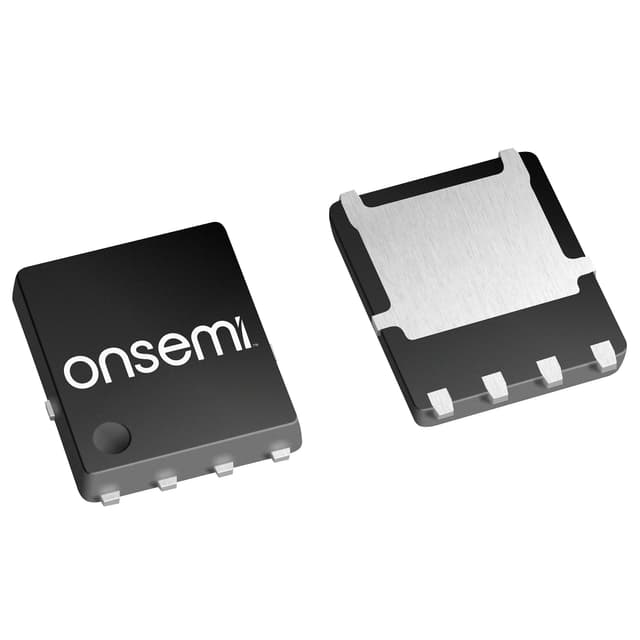

ONSEMI NVMFS5C682NLWFAFT1G
Manufacturer No:
NVMFS5C682NLWFAFT1G
Manufacturer:
Package:
8-PowerTDFN, 5 Leads
Description:
Single N-Channel Power MOSFET 60V, 25A, 21mΩ
Quantity:
Delivery:




Payment:






PRICING (in USD)
Qty | Unit Price | Ext Price |
---|---|---|
1 | USD 0.4593 | USD 0.4593 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
NVMFS5C682NLWFAFT1G information
ONSEMI NVMFS5C682NLWFAFT1G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NVMFS5C682NLWFAFT1G.
Type | Parameter |
---|---|
Wide SOA Mosfets | 0 |
OPN in older Technology | 0 |
Case Outline | 507BA |
Vgs (V) | ±20 |
Package Type | DFNW5 4.90x5.90x1.00, 1.27P |
MSL Type | 1 |
Container Type | REEL |
RDS(on) Max @ VGS = 10 V (mΩ) | 21 |
Qrr Typ (nC) | 7 |
Crss Typ (pF) | 7 |
MSL Temp (°C) | 260 |
Channel Polarity | N-Channel |
Silicon Family | PowerTrench® T6 |
PD Max (W) | 28 |
Vgs(th) Max (V) | 2 |
ID Max (A) | 25 |
RDS(on) Max @ VGS = 2.5 V (mΩ) | - |
Qg Typ @ VGS = 10 V (nC) | 5 |
Configuration | Single |
V(BR)DSS Min (V) | 60 |
Qg Typ @ VGS = 4.5 V (nC) | - |
Ciss Typ (pF) | 410 |
RDS(on) Max @ VGS = 4.5 V (mΩ) | 31.5 |
Qgd Typ @ VGS = 4.5 V (nC) | 0.5 |
Type | Parameter |
---|---|
Container Qty. | 1500 |
Package Name | Power 56 (SO-8FL) |
Type | Low-Medium Voltage |
Gate Level | Logic |
