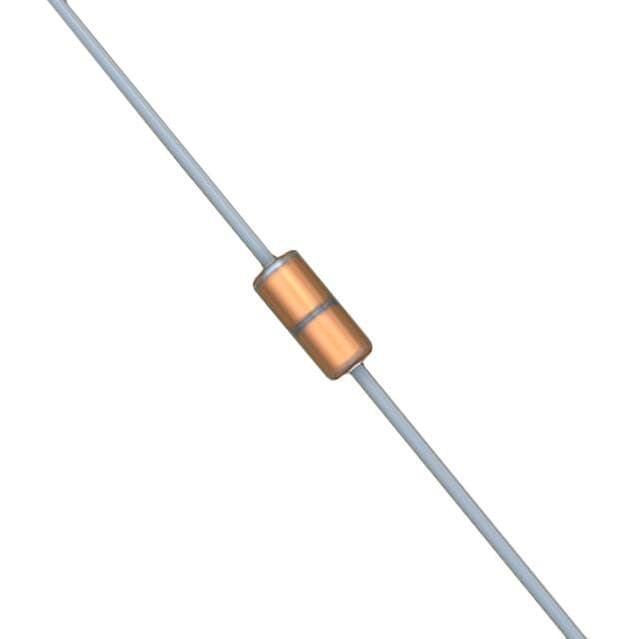

VISHAY NTCLG100XX104JB

Manufacturer No:

NTCLG100XX104JB

Manufacturer:

VISHAY

Package:

DO-204AH, DO-35, Axial

Description:

2322 Series 100k Through Hole -40°C~200°C 3997K B Value Tolerance:±1.3% Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NTCLG100XX104JB information

VISHAY NTCLG100XX104JB technical specifications, attributes, parameters and parts with similar specifications to VISHAY NTCLG100XX104JB.

Type
Parameter

Mounting Type
Through Hole

Package / Case
DO-204AH, DO-35, Axial

Operating Temperature
-40°C~200°C

Packaging
Bulk

Series
2322

Published
2016

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Lead Length
1.00 25.40mm

Power - Max
100mW

Resistance Tolerance
±5%

Resistance in ? @ 25°C
100k

B Value Tolerance
±1.3%

B25/85
3997K

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY NTCLG100XX104JB.

Datasheets:

vishaybccomponents-ntclg100e2103jb-datasheets-0448.pdf

NTCLG100XX104JB Overview

Those are the thermistors that come in a Bulk. It is included in DO-204AH, DO-35, Axial as a convenience. When using NTC thermistors, resistance tolerance is ±5%. In order to ensure reliable performance, NTC thermistors should be set to -40°C~200°C. There is a maximum power setting of 100mW set by the NTC thermistors.

NTCLG100XX104JB Features

Package/Case: Bulk
2322 Series
Operating Temperature: -40°C~200°C
Mounting Type: Through Hole

NTCLG100XX104JB Applications

There are a lot of Vishay BC Components
NTCLG100XX104JB NTC Thermistors applications.

Temperature compensation for semiconductor devices
Temperature detection for CPU and memory device
Temperature compensation for ink-viscosity (Inkjet Printer)
Temperature detection of battery cells
Temperature compensation of display contrast
Temperature compensation of display backlighting (CCFL)
Personal Computer and Peripheral Device
Personal Computer and Peripheral Device
Liquid Crystal Display
Temperature measurement and compensation
