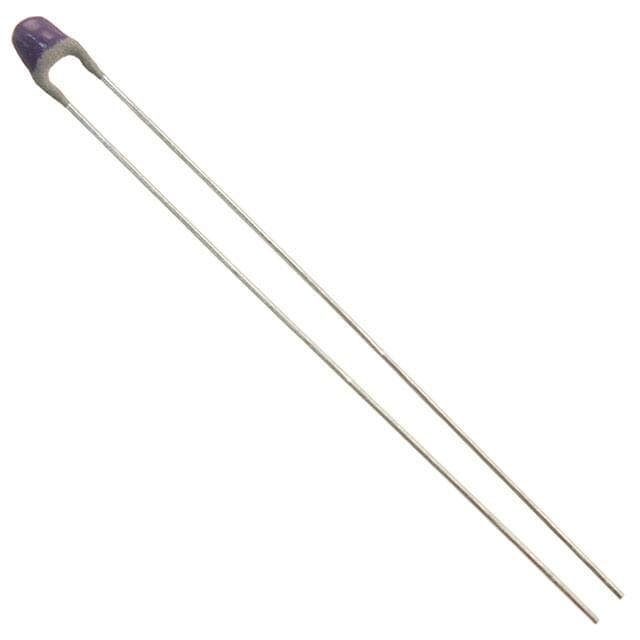

VISHAY NTCLE203E3474JB0
VISHAY NTCLE203E3474JB0

VISHAY NTCLE203E3474JB0

Manufacturer No:

NTCLE203E3474JB0

Manufacturer:

VISHAY

Package:

Bead

Description:

Tolerance:5% 470k Through Hole -40°C~125°C 4570K B Value Tolerance:±1.5% Bulk

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NTCLE203E3474JB0 information

VISHAY NTCLE203E3474JB0 technical specifications, attributes, parameters and parts with similar specifications to VISHAY NTCLE203E3474JB0.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Bead
  • Number of Pins
  • 2
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Bulk
  • Published
  • 2015
  • Tolerance
  • 5%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Resistance
  • 470kOhm
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -40°C
  • Power Rating
  • 100mW
  • Max Power Dissipation
  • 100mW
  • Depth
  • 3mm
  • Lead Pitch
  • 2.54mm
  • Lead Length
  • 1.58 40.00mm
  • Lead Diameter
  • 500 ?m
  • Voltage
  • 500V
  • Power - Max
  • 100mW
  • Accuracy
  • 1.5 %
  • Resistance in ? @ 25°C
  • 470k
  • B Value Tolerance
  • ±1.5%
  • B25/85
  • 4570K
  • Length
  • 3.6mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY NTCLE203E3474JB0.

Datasheets:

RohsStatement:

NTCLE203E3474JB0 Overview


NTC thermistors comes in the package of a Bulk. For convenience, it is included in the Bead package. The resistance tolerance for NTC thermistors is ±5% to make it work. To ensure reliable performance, the temperature of NTC thermistors should be set to -40°C~125°C. The maximum operating temperature of 125°C allows for reliable operation of NTC thermistors. For reliability, NTC thermistors can operate at a minimum temperature of -40°C. For the NTC thermistors to work properly, 2 pins must be connected in order to make it work. The maximum power set by the NTC thermistors is 100mW. NTC thermistors can operate at a maximum power dissipation of 100mW.

NTCLE203E3474JB0 Features


2 Pins
Package/Case: Bulk
Operating Temperature: -40°C~125°C
470kOhm Resistance
Mounting Type: Through Hole
5% Tolerance


NTCLE203E3474JB0 Applications


There are a lot of Vishay BC Components
NTCLE203E3474JB0 NTC Thermistors applications.


  • Temperature compensation for crystal oscillator
  • Temperature compensation for semiconductor devices
  • Temperature detection for CPU and memory device
  • Temperature compensation for ink-viscosity (Inkjet Printer)
  • Temperature detection of battery cells
  • Temperature compensation of display contrast
  • Temperature compensation of display backlighting (CCFL)
  • Personal Computer and Peripheral Device
  • Personal Computer and Peripheral Device
  • Liquid Crystal Display
