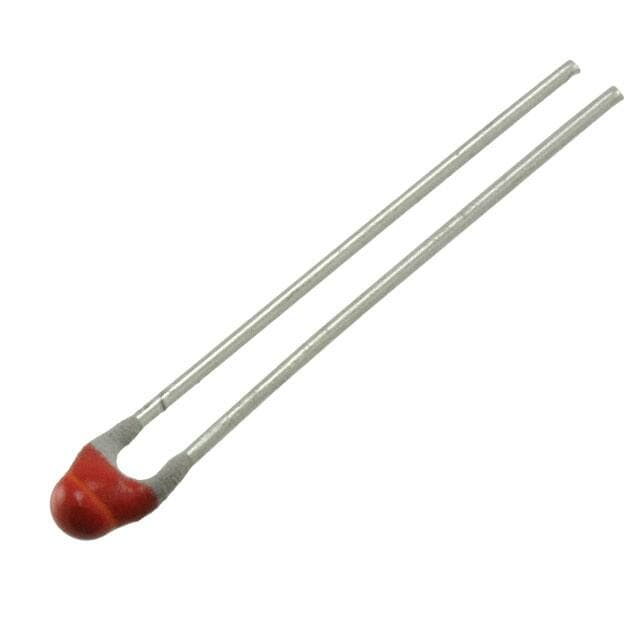

VISHAY NTCLE100E3223GB0

Manufacturer No:

NTCLE100E3223GB0

Manufacturer:

VISHAY

Package:

Bead

Description:

NTC THERMISTOR Tolerance:2% 22k Through Hole -40°C~125°C 3740K Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NTCLE100E3223GB0 information

VISHAY NTCLE100E3223GB0 technical specifications, attributes, parameters and parts with similar specifications to VISHAY NTCLE100E3223GB0.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Bead

Terminal Shape
WIRE

Number of Pins
2

Operating Temperature
-40°C~125°C

Packaging
Bulk

Published
2016

Tolerance
2%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8533.40.80.70

Max Power Dissipation
500mW

Depth
3mm

Resistor Type
NTC THERMISTOR

Rated Power Dissipation (P)
0.5W

Lead Length
0.59 15.00mm

Terminal Placement
RADIAL

Resistance Tolerance
±2%

Thermistor Application
TEMPERATURE SENSING

Resistance in Ω @ 25°C
22k

B25/85
3740K

Thermal Sensitivity Index
3740 K

Length
3.3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY NTCLE100E3223GB0.

Datasheets:

vishaybccomponents-ntcle100e3103jb0-datasheets-5627.pdf

vishaybccomponents-ntcle100e3103jb0-datasheets-5628.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

NTCLE100E3223GB0 Overview

There is a package of a Bulk in which NTC thermistors can be found. We have included it in the Bead package for your convenience. As a result, NTC thermistors must have a resistance tolerance of ±2% in order to function correctly. NTC thermistors should be set to -40°C~125°C temperature in order to provide reliable performance. There are 2 terminations on these NTC thermistors. A NTC thermistor must have the 2 pins connected in order to function properly. Dissipation of energy of 0.5W can be absorbed by the electronic component. Thermistors with NTC technology can dissipate up to 500mW of power.

NTCLE100E3223GB0 Features

2 Pins
Package/Case: Bulk
Operating Temperature: -40°C~125°C
Rated Power Dissipation: 0.5W
Mounting Type: Through Hole
2% Tolerance

NTCLE100E3223GB0 Applications

There are a lot of Vishay BC Components
NTCLE100E3223GB0 NTC Thermistors applications.

Temperature detection for CPU and memory device
Temperature compensation for ink-viscosity (Inkjet Printer)
Temperature detection of battery cells
Temperature compensation of display contrast
Temperature compensation of display backlighting (CCFL)
Personal Computer and Peripheral Device
Personal Computer and Peripheral Device
Liquid Crystal Display
Temperature measurement and compensation
LCD compensation
