Manufacturer No:

NSV60101DMTWTBG

Manufacturer:

ONSEMI

Package:

6-WDFN Exposed Pad

Description:

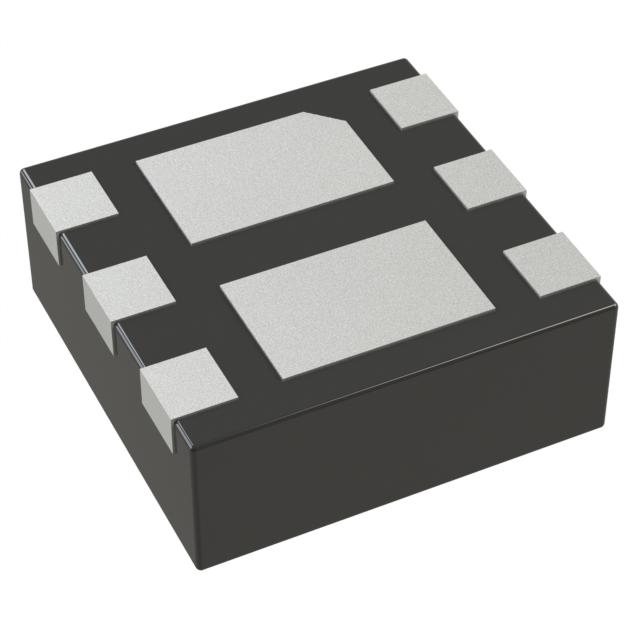

Dual 60V 1A Low V<sub>CE(sat)</sub> NPN Transistors in WDFN6

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NSV60101DMTWTBG information

ONSEMI NSV60101DMTWTBG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NSV60101DMTWTBG.

  • Type
  • Parameter
  • PTM Max (W)
  • 2.27
  • Package Type
  • WDFN-6
  • MSL Temp (°C)
  • 260
  • VCE(sat) Max (V)
  • 0.18
  • VCBO (V)
  • 60
  • MSL Type
  • 1
  • IC Cont. (A)
  • 1
  • VBE(on) (V)
  • 0.9
  • hFE Min
  • 90
  • fT Min (MHz)
  • 180
  • Case Outline
  • 506AN
  • Container Type
  • REEL
  • VCEO Min (V)
  • 60
  • VBE(sat) (V)
  • 1.1
  • hFE Max
  • -
  • Container Qty.
  • 3000
  • Polarity
  • Dual NPN
  • Type
  • Low VCE(sat)
  • VEBO (V)
  • 6

Download datasheets and manufacturer documentation for ONSEMI NSV60101DMTWTBG.

Datasheet:

Package Drawing:

onsemi’s e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability in a small form factor, 2x2mm plastic leadless package. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU’s control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers.

Application

  • Low Side Switching
  • Amplification

End Product

  • Automotive Transmission Control Unit
  • Automotive Engine Control Unit
  • Automotive Infotainment

Feature

  • 1A IDC, 2A ICM
  • Low VCE(sat): 0.115V @ 1A IC, IC/IB= 10
  • NSV60101DMTWTBG - Wettable Flanks Packaged Device
  • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
  • These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
  • Beta of 180 @ 1ADC, VCE = 2V

User Guide
