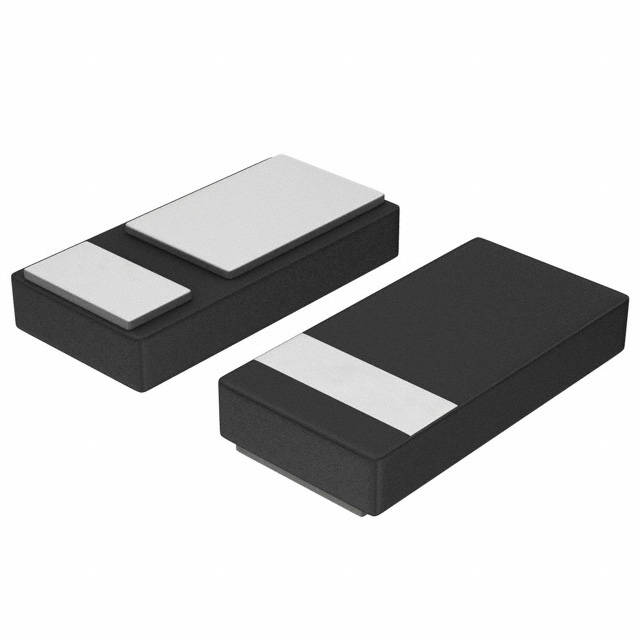

ONSEMI NSR20F30NXT5G
Manufacturer No:
NSR20F30NXT5G
Manufacturer:
Package:
2-XDFN
Description:
Schottky Barrier Diode, 30 V, 2.0 A, Low I<sub>R</sub>
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
NSR20F30NXT5G Information
ONSEMI NSR20F30NXT5G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NSR20F30NXT5G.
- Type
- Parameter
- Package Type
- DSN-2
- MSL Temp (°C)
- 260
- IRM Max (µA)
- 20
- IFSM Max (A)
- 28
- VF Max (V)
- 0.48
- Cj Max (pF)
- -
- Case Outline
- 152AB
- MSL Type
- 1
- Container Qty.
- 5000
- Configuration
- Single
- Type
- Parameter
- VRRM Min (V)
- 30
- Container Type
- DSFTP
- trr Max (ns)
- -
- IO(rec) Max (A)
- 2
Download datasheets and manufacturer documentation for ONSEMI NSR20F30NXT5G.
Datasheet:
Package Drawing:
The Schottky diode is optimized for low forward voltage drop and low leakage current and are offered in a Chip Scale Package (CSP) to reduce board space. The low thermal resistance enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.
Application
- LCD and Keypad Backlighting
- Buck and Boost dc-dc converters
- Reverse Voltage and Current Protection
End Product
- GPS Systems
- Consumer/Portable Products
- Notebooks PCs & PDAs
Feature
- Very Low Forward Voltage Drop (VF)
- Low Reverse Current (IR)
- High ESD Ratings: HMB(3B), MM(C)
- 2.0 A of continuous forward current
