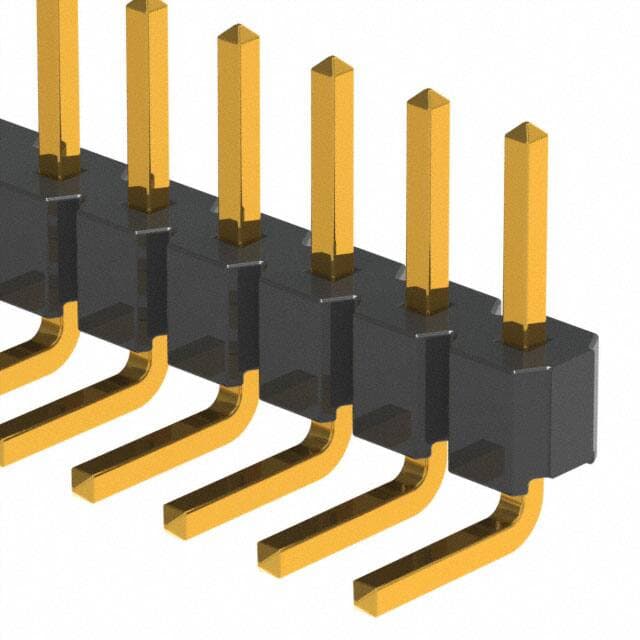

Sullins Connector Solutions NRPN401PARN-RC
Sullins Connector Solutions NRPN401PARN-RC

Sullins Connector Solutions NRPN401PARN-RC

Manufacturer No:

NRPN401PARN-RC

Manufacturer:

Sullins Connector Solutions

Package:

Description:

Board Connector

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NRPN401PARN-RC information

Sullins Connector Solutions NRPN401PARN-RC technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions NRPN401PARN-RC.

  • Type
  • Parameter
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Samacsys Manufacturer
  • Sullins
  • Body Breadth
  • 0.079 inch
  • Body Depth
  • 0.118 inch
  • Body Length
  • 3.15 inch
  • Connector Type
  • BOARD CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • NOT APPLICABLE
  • Contact Gender
  • MALE
  • Contact Material
  • NOT SPECIFIED
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 20 mΩ
  • Contact Style
  • SQ PIN-SKT
  • Dielectric Withstanding Voltage
  • 500VAC V
  • Filter Feature
  • NO
  • Insulation Resistance
  • 5000000000 Ω
  • Insulator Material
  • POLYAMIDE
  • Mating Contact Pitch
  • 0.079 inch
  • Mixed Contacts
  • NO
  • Mounting Option 1
  • LOCKING
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 1
  • Number of Rows Loaded
  • 1
  • Operating Temperature-Max
  • 105 °C
  • Operating Temperature-Min
  • -40 °C
  • Option
  • GENERAL PURPOSE
  • PCB Contact Pattern
  • RECTANGULAR
  • Plating Thickness
  • FLASH inch
  • Rated Current (Signal)
  • 2 A
  • Reference Standard
  • UL
  • Terminal Length
  • 0.11 inch
  • Terminal Pitch
  • 2 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 40
  • UL Flammability Code
  • 94V-0

Download datasheets and manufacturer documentation for Sullins Connector Solutions NRPN401PARN-RC.

Datasheets:

Environmental Information:

NRPN401PARN-RC Overview


The product comes in a package of Header.Through Hole, Right Angle is the mount type.Bulk cases are used to package the product.There's a Through Hole on the part.Operating temperature is -40°C~105°C.

NRPN401PARN-RC Features




NRPN401PARN-RC Applications


There are a lot of Sullins Connector Solutions
NRPN401PARN-RC Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
