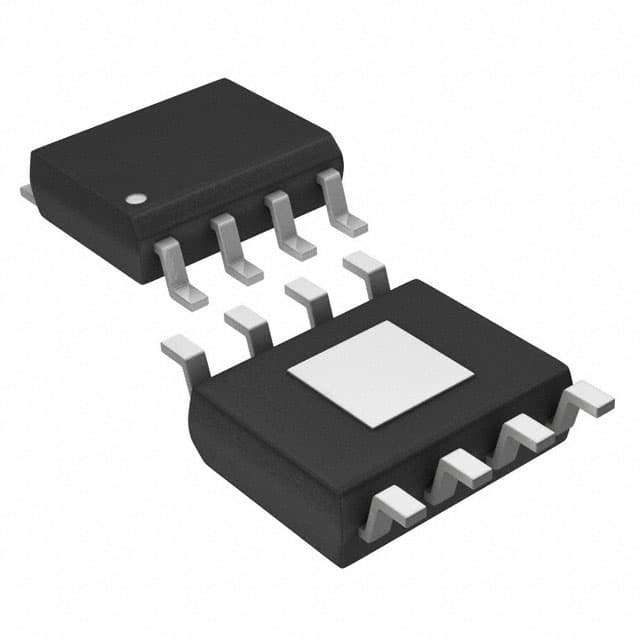

SANKEN NR111E

Manufacturer No:

NR111E

Manufacturer:

SANKEN

Package:

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

8 Terminals 6.5V DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 350kHz Tape & Reel (TR) 4A 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NR111E information

SANKEN NR111E technical specifications, attributes, parameters and parts with similar specifications to SANKEN NR111E.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.154, 3.90mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Terminal Position
DUAL

Terminal Form
GULL WING

JESD-30 Code
R-PDSO-G8

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
31V

Output Type
Adjustable

Voltage - Input (Min)
6.5V

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
4A

Voltage - Output (Min/Fixed)
0.8V

Control Mode
CURRENT-MODE

Frequency - Switching
350kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
No

Voltage - Output (Max)
24V

Length
4.9mm

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SANKEN NR111E.

Datasheets:

sanken-nr119e-datasheets-4338.pdf

NR111E Overview

Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. A voltage regulator consists of 8 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. There is a 8-SOIC (0.154, 3.90mm Width) Exposed Pad package available for this voltage regulator, as DC DC switching regulator is space-saving. 1 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Adjustable output. Switching regulators like this one can be mounted on the Surface Mount mounting system. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~85°C TA. In this voltage regulator 12v, the switching frequency is 350kHz. Regulator 6.5V can operate with dc to dc voltage regulator's minimum input voltage 6.5V. There is a adjusting voltage regulator's voltage output (Min/Fixed) of 0.8V. DC DC switching regulator's maximum design flexibility comes from its output current of 4A. Voltage regulator's input voltage can reach 31V. For operation, switching regulator requires a nominal input voltage of 12V. The maximal output voltage of 24V allows DC DC switching regulator to be operated easily.

NR111E Features

1 outputs

NR111E Applications

There are a lot of Sanken
NR111E Voltage Regulators applications.

Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
