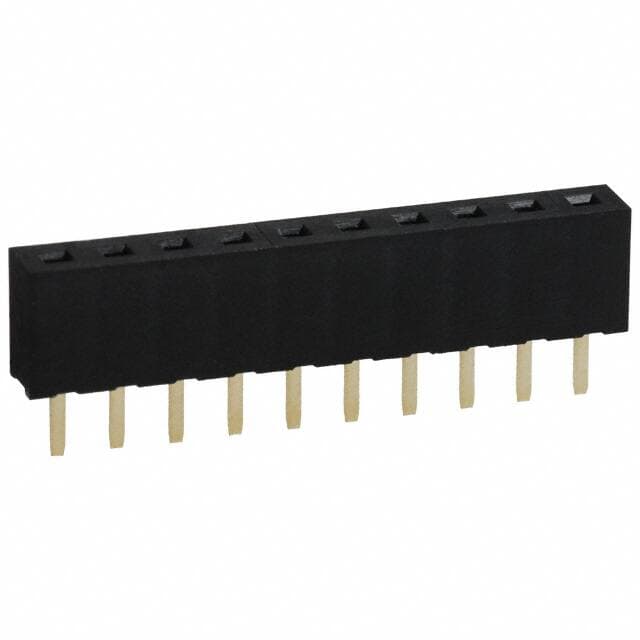

Sullins Connector Solutions NPPN101BFCN-RC

Manufacturer No:

NPPN101BFCN-RC

Manufacturer:

Sullins Connector Solutions

Package:

ROHS COMPLIANT

Description:

Description: Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NPPN101BFCN-RC information

Sullins Connector Solutions NPPN101BFCN-RC technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions NPPN101BFCN-RC.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
SULLINS CONNECTOR SOLUTIONS INC

Package Description
ROHS COMPLIANT

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.69.40.40

Samacsys Manufacturer
Sullins

Body Breadth
0.094 inch

Body Depth
0.173 inch

Body Length
0.787 inch

Connector Type
BOARD CONNECTOR

Contact Finish Mating
NOT SPECIFIED

Contact Finish Termination
Gold (Au) - with Nickel (Ni) barrier

Contact Gender
FEMALE

Contact Material
PHOSPHOR BRONZE

Contact Pattern
RECTANGULAR

Contact Resistance
20 mΩ

Contact Style
SQ PIN-SKT

DIN Conformance
NO

Dielectric Withstanding Voltage
500VAC V

Filter Feature
NO

IEC Conformance
NO

Insulator Color
BLACK

Insulator Material
POLYAMIDE

JESD-609 Code
e4

MIL Conformance
NO

Mating Contact Pitch
0.079 inch

Mixed Contacts
NO

Mounting Option 1
LOCKING

Mounting Style
STRAIGHT

Mounting Type
BOARD

Number Of Connectors
ONE

Number Of PCB Rows
1

Number of Rows Loaded
1

Operating Temperature-Max
105 °C

Operating Temperature-Min
-40 °C

Option
GENERAL PURPOSE

PCB Contact Pattern
RECTANGULAR

Plating Thickness
FLASH inch

Rated Current (Signal)
2 A

Reference Standard
UL

Terminal Length
0.094 inch

Terminal Pitch
2 mm

Termination Type
SOLDER

Total Number of Contacts
10

Download datasheets and manufacturer documentation for Sullins Connector Solutions NPPN101BFCN-RC.

Datasheets:

sullinsconnectorsolutions-nppn361bfcnrc-datasheets-8555.pdf

Environmental Information:

sullinsconnectorsolutions-wct001mct-environmentalinformation-6146.pdf

NPPN101BFCN-RC Overview

You'll get Header packages.A Through Hole mounting type is specified for the device.A Tube case is used for packaging.By Through Hole it's mounted.In this case, the device runs at -40°C~105°C Operating Temperature.

NPPN101BFCN-RC Features

NPPN101BFCN-RC Applications

There are a lot of Sullins Connector Solutions
NPPN101BFCN-RC Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
