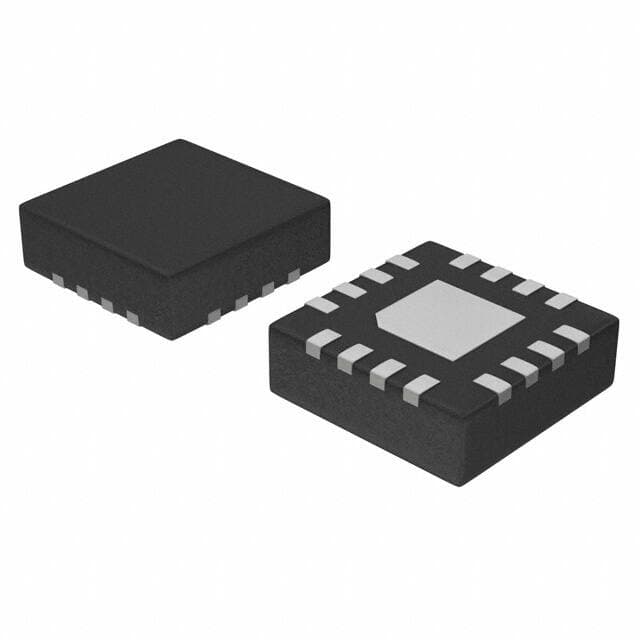

ONSEMI NLAS4783MN1R2G

Manufacturer No:

NLAS4783MN1R2G

Manufacturer:

ONSEMI

Package:

16-VFQFN Exposed Pad

Description:

27ns, 20ns SPDT 1Ohm DUAL Analog Switches BREAK-BEFORE-MAKE NLAS4783 16 Pins 500nA 2.7V 16-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NLAS4783MN1R2G information

ONSEMI NLAS4783MN1R2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NLAS4783MN1R2G.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 6 days ago)

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VFQFN Exposed Pad

Number of Pins
16

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Resistance
1.2Ohm

Terminal Finish
Tin (Sn)

Subcategory
Multiplexer or Switches

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Supply Voltage
2.7V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
16

Number of Outputs
6

Operating Supply Voltage
3V

Number of Channels
3

Max Supply Voltage
3.6V

Min Supply Voltage
1.65V

Operating Supply Current
2?A

Turn On Delay Time
25 ns

Halogen Free
Halogen Free

Supply Type
Single

Turn-Off Delay Time
15 ns

-3db Bandwidth
17MHz

On-State Resistance (Max)
1Ohm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
62 dB

Current - Leakage (IS(off)) (Max)
500nA

Channel Capacitance (CS(off), CD(off))
5pF

Switch Circuit
SPDT

Switch Time (Ton, Toff) (Max)
27ns, 20ns

Charge Injection
50pC

Channel-to-Channel Matching (?Ron)
400m ? (Max)

Crosstalk
-62dB @ 100kHz

Switching
BREAK-BEFORE-MAKE

Download datasheets and manufacturer documentation for ONSEMI NLAS4783MN1R2G.

Datasheets:

onsemiconductor-nlas4783mn1r2g-datasheets-9196.pdf

PCN Design/Specification:

onsemiconductor-nbsg16mmng-pcndesignspecification-5036.pdf

NLAS4783MN1R2G Overview

As the electronic part is packed in 16-VFQFN Exposed Pad, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). The multiplexer is located in Surface Mount. 2:1 is the number of circuits in the multiplexer and demultiplexer. Operating temperature extended to -40°C~85°C TA. Total terminations are 16. The electronic part provides high-quality output because it has 3 channels. Powered by a 2.7V voltage supply, the electrical part should be switched on and run. The electrical component body receives 16 pins. Circuits based on SPDT switching are used to construct these analog switch ics. Try searching with NLAS4783 to find analog multiplexer variants. An switch multiplexer with 1.2Ohm internal resistance has a value of 1.2Ohm. Datasheets for 16 pin functions are available upon request. The analogue multiplexer in this example is a typical Multiplexer or Switches. Multiplexers should not be powered above 3.6V in normal situations. The analog switch ic is of the Single supply type and is cost-effective. The lowest voltage the electronic part should receive is 1.65V. An operating current of 2?A would be sufficient for this switch device. Using a single voltage supply, this switch device consumes 1.65V~4.5V volts. 3V operating voltages can be used with this electrical part. A analog switch ics with 6 outputs is included.

NLAS4783MN1R2G Features

3 Channels
Switch Circuit: SPDT
2?A Supply Current
-3db Bandwidth: 17MHz

NLAS4783MN1R2G Applications

There are a lot of ON Semiconductor
NLAS4783MN1R2G Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
