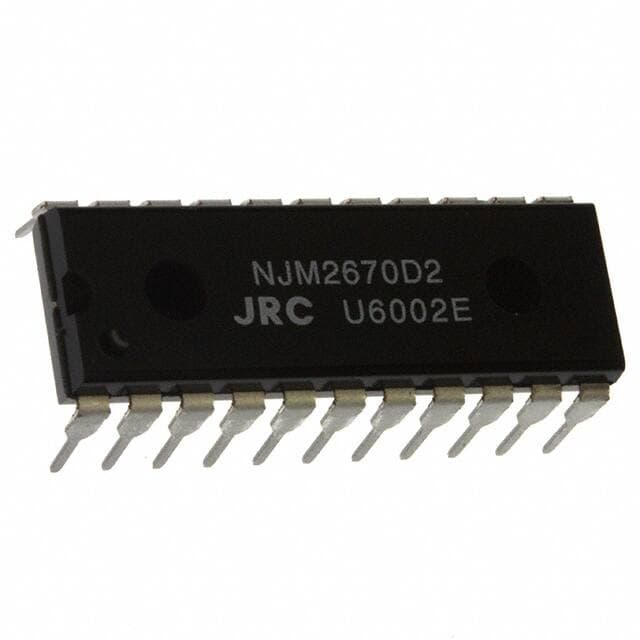

NJR NJM2670D2

Manufacturer No:

NJM2670D2

Manufacturer:

NJR

Package:

22-DIP (0.400, 10.16mm)

Description:

Motor Drivers

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NJM2670D2 information

NJR NJM2670D2 technical specifications, attributes, parameters and parts with similar specifications to NJR NJM2670D2.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Through Hole

Package / Case
22-DIP (0.400, 10.16mm)

Supplier Device Package
22-DIP

Operating Temperature
-20°C~125°C TJ

Packaging
Tube

Published
2003

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Applications
General Purpose

Technology
Bipolar

Voltage - Supply
4.75V~5.25V

Function
Driver - Fully Integrated, Control and Power Stage

Interface
Parallel

Output Configuration
Half Bridge (4)

Current - Output
1.3A

Voltage - Load
4V~55V

Motor Type - AC, DC
Brushed DC

Motor Type - Stepper
Bipolar

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NJR NJM2670D2.

Datasheets:

njrcorporationnjrc-njm2670d2-datasheets-2027.pdf

NJM2670D2 Overview

Drivers controllers is designed wDrivers controllersh a package of [0].A 22-DIP (0.400, 10.16mm)case is included with the part.Ideally, the part should be mounted by Through Hole.This component is suitable for the component connected to General Purpose.Drivers controllers is capable of supplying 4.75V~5.25V volts.This device operates at a temperature range of -20°C~125°C TJ.Drivers controllers is possible to categorize the motor type as Brushed DC.Drivers controllers is possible to apply voltage to the load at the rate of 4V~55V.Set the part's output current to 1.3A.

NJM2670D2 Features

Applications : General Purpose
Load voltage across the chip 4V~55V
