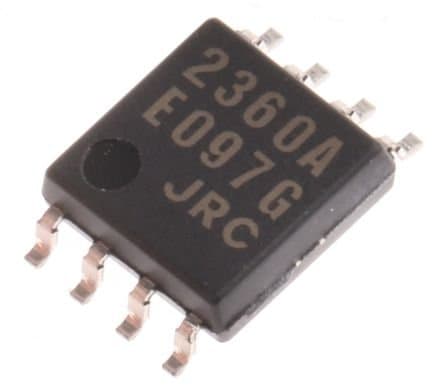

NJR NJM2360AM

Manufacturer No:

NJM2360AM

Manufacturer:

NJR

Package:

Description:

PMIC 8 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NJM2360AM information

NJR NJM2360AM technical specifications, attributes, parameters and parts with similar specifications to NJR NJM2360AM.

Type
Parameter

Mount
Surface Mount

Number of Pins
8

Max Operating Temperature
85 °C

Min Operating Temperature
-40 °C

Number of Outputs
1

Output Voltage
40 V

Max Output Current
1.5 A

Output Current
1.5 A

Max Output Voltage
40 V

Topology
Boost

Min Input Voltage
2.5 V

Max Input Voltage
40 V

Min Output Voltage
1.25 V

Switching Frequency
100 kHz

Height
1.6 mm

Length
5 mm

Width
5 mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NJR NJM2360AM.

Datasheets:

newjapanradio-njm2360am-datasheets-6866.pdf

newjapanradio-njm2360am-datasheets-6867.pdf

NJM2360AM Overview

Voltage regulator supports 1 outputs in total.The voltage regulator has 8 pins.It has a 40 V voltage output.This regulator requires input voltage ? 2.5 V.The maximum voltage this voltage regulator can use is 40 V.Current output from the DC DC Switching Regulator should be 1.5 A.It is designed to produce current 1.5 A at its maximum.It has a Surface Mount for mouting on PCB or other boards.The lowest voltage this controller output can output is 1.25 V.Temperature lower than -40 °C is not suitable for the voltage regulator.Temperature higher than 85 °C is not recommended for use.This voltage regulator can output 40 V voltage at most.

NJM2360AM Features

1 outputs

NJM2360AM Applications

There are a lot of New Japan Radio
NJM2360AM Linear Regulator Controllers applications.

Ultrahigh current ultralow dropout voltage regulator
Constant high-current source
Low parts count 5.0V to 3.3V computer supply
Low noise SMPS post regulator
Low-dropout SMPS post regulator
High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
