NXP NE57811S/N1,518

Manufacturer No:

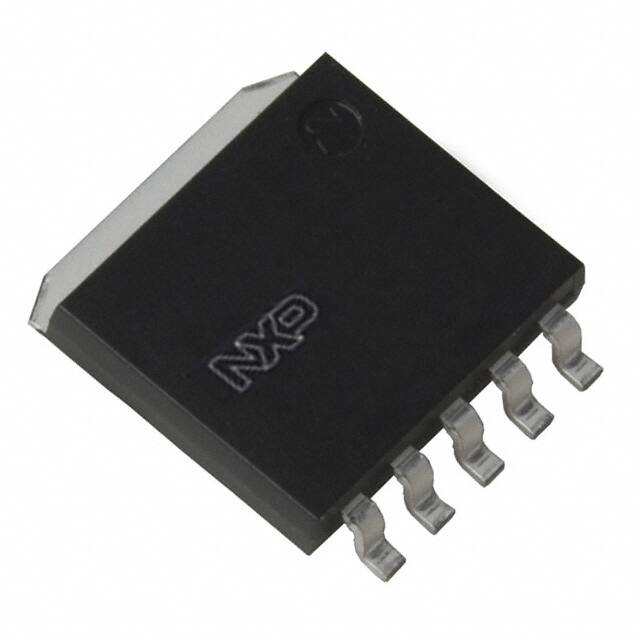

NE57811S/N1,518

Manufacturer:

NXP

Package:

SPak-5 (5 leads + Tab)

Description:

Converter, DDR 260 Cel SINGLE Specialized Voltage Regulator 0°C~70°C NE57811 5 Pins 5 Terminations SPak-5 (5 leads + Tab)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NE57811S/N1,518 information

NXP NE57811S/N1,518 technical specifications, attributes, parameters and parts with similar specifications to NXP NE57811S/N1,518.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
SPak-5 (5 leads + Tab)

Surface Mount
YES

Operating Temperature
0°C~70°C

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
TIN

Applications
Converter, DDR

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
NE57811

Pin Count
5

JESD-30 Code
R-PSSO-G5

Number of Outputs
1

Qualification Status
Not Qualified

Voltage - Input
1.6V~3.6V

Differential Output
NO

Interface IC Type
BUS TERMINATOR SUPPORT CIRCUIT

Length
9.395mm

Height Seated (Max)
2.03mm

Width
8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP NE57811S/N1,518.

NE57811S/N1,518 Overview

The system supports a total of 1 outputs. In order to facilitate transportation, it is packaged in SPak-5 (5 leads + Tab). We are ready to ship in Tape & Reel (TR) packages. It has a mounting type of Surface Mount. Applications targeting this device include Converter, DDR and others. As a precaution, it is recommended to set the operating temperature to 0°C~70°C to prevent malfunctions. This regulator is designed to have a voltage input of 1.6V~3.6V. The part contains 5terminals. Assuming that the component has 5pins, the pinout begins from there. Find more pin-to-pin solutions by searching NE57811. Providing 2.5Vvoltage, the part is capable of handling a wide range of tasks. The interface of this regulator is provided by a BUS TERMINATOR SUPPORT CIRCUITIC.

NE57811S/N1,518 Features

Widely used in Converter, DDR applications
Adopts BUS TERMINATOR SUPPORT CIRCUIT interface IC

NE57811S/N1,518 Applications

There are a lot of NXP USA Inc. NE57811S/N1,518 Specialized Voltage Regulators applications.

Point of Load Regulation for High
Active Termination of GTL and SSTL
FPGAs
Microprocessors Requiring Sequencing
PDAs
Broadband, Networking and Optical
DDR2/DDR3/DDR3L Memory Power Supplies
Polymer LEDs (OLED)
Mobile Radios
Embedded Systems
