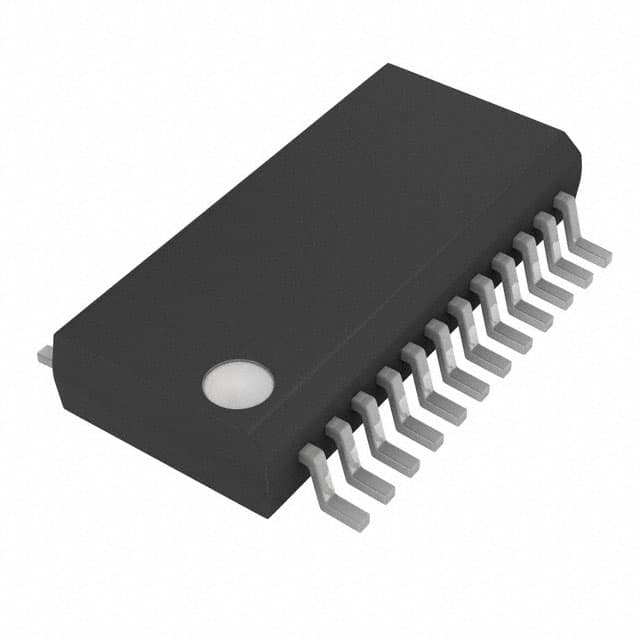

ONSEMI NCV7754DPR2G

Manufacturer No:

NCV7754DPR2G

Manufacturer:

ONSEMI

Package:

24-SSOP (0.154, 3.90mm Width)

Description:

Octal Low-side Relay Driver, Eight Channel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCV7754DPR2G information

ONSEMI NCV7754DPR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCV7754DPR2G.

Type
Parameter

rDS(on) Max (Ω)
1.6

Package Type
SSOP-24

MSL Temp (°C)
260

Container Type
REEL

Number of Drivers
8

V(BR)GSS Max (V)
5.5

V(BR)DSS Max (V)
36

ID Max (A)
0.95

Case Outline
565AL

MSL Type
2

Container Qty.
2500

VCC Max (V)
5.5

Tj Max (°C)
150

Download datasheets and manufacturer documentation for ONSEMI NCV7754DPR2G.

Package Drawing:

e56c3d2cbb17c7e1111e11ad3692d5c9.pdf

Datasheet:

8632a42cfd6b4abdb66952432c509ce4.pdf

The NCV7754 is an automotive eight channel low−side driverproviding drive capability up to 500 mA per channel. Output control isvia a SPI port and offers convenient reporting of faults for open load(or short to ground), over load, and over temperature conditions.Additionally, parallel control of the outputs is addressable (in pairs)via the INx pins.A dedicated limp−home mode pin (LHI) enables OUT1−OUT4while disabling OUT5−OUT8.Each output driver is protected for over load current and includes anoutput clamp for inductive loads.The NCV7754 is available in a SSOP−24 fused lead package.

Application

Automotive Engine Control Unit
Relay Driver
LED Driver
Stepper Motor Driver
Automotive Body Control Unit

End Product

Automobile

Feature

8 Channels
500 mA Low-Side Drivers
1.6 ohm Max Rdson
16 bit SPI Control
Frame Error Detection
Daisy Chain Capable
Parallel Input Pins
Power-up without open circuit detection active
3.3V and 5V compatible Digital Input Supply Range
Limp Home Functionality
Fault Reporting
VDD and VDDA Power-on Reset
SSOP-24 with fused lead
NCV prefix with Site and change control, AEC-Q100 and PPAP Capable
Pb-free Device
Low Quiescent Current in Sleep and Standby Modes

User Guide
