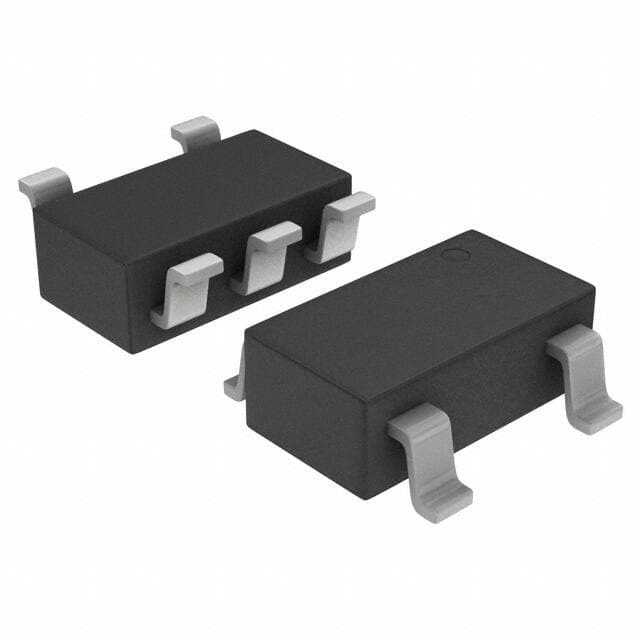

ONSEMI NCV303LSN46T1

Manufacturer No:

NCV303LSN46T1

Manufacturer:

ONSEMI

Package:

SOT-23-5 Thin, TSOT-23-5

Description:

1.5V 5 Terminals 5-Pin NCV303 Voltage supervisor Automotive, AEC-Q100 Series 1 Channels Min 800mV Max 10V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCV303LSN46T1 information

ONSEMI NCV303LSN46T1 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCV303LSN46T1.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 2 weeks ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-23-5 Thin, TSOT-23-5

Number of Pins
5

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Type
Simple Reset/Power-On Reset

Terminal Finish
Tin/Lead (Sn80Pb20)

Additional Feature
DETECTION THRESHOLD VOLTAGE IS 4.6V

Subcategory
Power Management Circuits

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
1.5V

Output
Open Drain or Open Collector

Pin Count
5

Number of Channels
1

Max Supply Voltage
10V

Min Supply Voltage
800mV

Operating Supply Current
500nA

Nominal Supply Current
520nA

Adjustable Threshold
NO

Accuracy
2 %

Watchdog Timer
No

Reset
Active Low

Voltage - Threshold
4.5V

Number of Voltages Monitored
1

Reset Timeout
Adjustable/Selectable

Threshold Voltage
+4.6V

Undervoltage Threshold
4.508V

Overvoltage Threshold
4.692V

Length
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ONSEMI NCV303LSN46T1.

Datasheets:

onsemiconductor-ncp303lsn16t1g-datasheets-1605.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCV303LSN46T1 Overview

This voltage supervisor has a total of 5 mounting terminals that can be used for mounting. Packaged in the form of a Tape & Reel (TR), power management is easy to use. Please find attached 1 functions for your reference in this IC power. Power management consists of 1 channels, each of which can be used independently. Please find attached SOT-23-5 Thin, TSOT-23-5 functions for your reference in this IC power. With power management, you get a lot of benefits that you won't find in other Simple Reset/Power-On Reset products. IC management conducts at a voltage of 1.5V. Power management conducts at a voltage of 1. By Surface Mount, IC management has been mounted. A IC power such as this can be classified as a Power Management Circuits power management system. 5 pins are present in total in this power management. 5 pins are on the supervisor. It is recommended that Vsup should not be less than 800mV for this IC power. The maximum supply voltage (Vsup) is not to exceed 10V volts in this IC management. In this case, Surface Mount is the recommended mounting type. The temperature of the supervisors should be set to this range: -40°C~125°C TA. As this power managment ic operates, it is able to produce an output voltage of Open Drain or Open Collector. The power management's supply current is 500nA. As well as this, there are other features to mention such as [0], for example. To find similar IC managements from the manufacturer, you can always search by NCV303. The IC power that you are looking at comes from our well-known Automotive, AEC-Q100 series product line.

NCV303LSN46T1 Features

Simple Reset/Power-On Reset type
Minimum supply voltage of 800mV
500nA operating supply current

NCV303LSN46T1 Applications

There are a lot of ON Semiconductor
NCV303LSN46T1 Voltage Supervisors applications.

Medical-specific insulation monitor
Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
Stable power system
Sensitive sensors
Efficient information transmission
