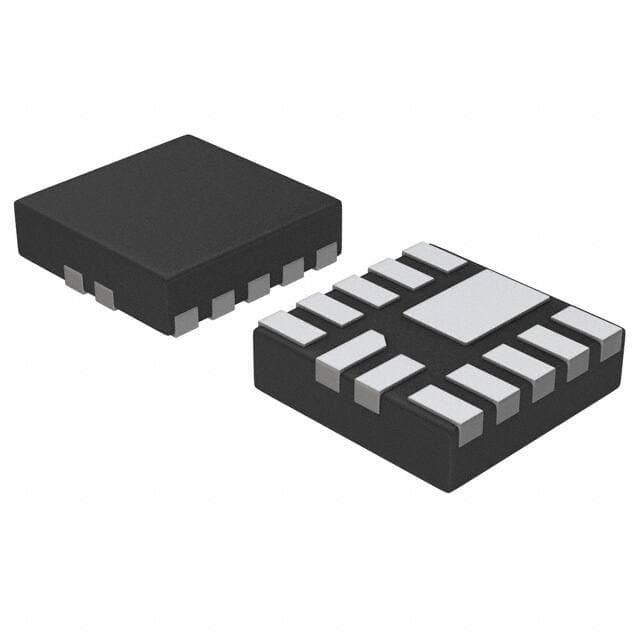

ONSEMI NCP5602MUTBG

Manufacturer No:

NCP5602MUTBG

Manufacturer:

ONSEMI

Package:

12-UFLGA Exposed Pad

Description:

0.4mm PMIC NCP5602 12 Pin 1MHz 3.6V 12-UFLGA Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP5602MUTBG information

ONSEMI NCP5602MUTBG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP5602MUTBG.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-UFLGA Exposed Pad

Number of Pins
12

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2006

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

Termination
SMD/SMT

ECCN Code
EAR99

Type
DC DC Regulator

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Applications
Backlight

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.6V

Terminal Pitch
0.4mm

Current Rating
60mA

Frequency
1MHz

Base Part Number
NCP5602

Pin Count
12

Number of Outputs
2

Qualification Status
Not Qualified

Operating Supply Voltage
5.5V

Max Supply Voltage
7V

Min Supply Voltage
2.7V

Power Dissipation
200mW

Output Current
60mA

Max Output Voltage
5.7V

Voltage - Output
4.8V~5.7V

Topology
Switched Capacitor (Charge Pump)

Output Current per Channel
60mA

Internal Switch(s)
Yes

Dimming
Analog

Number of Segments
2

Multiplexed Display Capability
NO

Data Input Mode
SERIAL

Height Seated (Max)
0.6mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI NCP5602MUTBG.

Datasheets:

onsemiconductor-ncp5602mutbg-datasheets-5473.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCP5602MUTBG Overview

Its 12-UFLGA Exposed Pad package is used to save board space. There are 2 outputs used for the design of this LED drivers.It adopts the way of Surface Mount for mounting.It emergys as a DC DC Regulator with high efficiency and reliable performance.It is able to work normally at the operating temperature of -40°C~85°C TA.It provides considerable benefits for Backlight.It operates based on the frequency of 1MHz.12 terminations are designed for its operation.There are 12 pins used to form the base of its configuration.There are 2 segments.It is mounted in the way of Surface Mount.This LED driver can be found under the base part number NCP5602.The supply voltage of 7V is an acceptable maximum value.The voltage at the output terminal is 4.8V~5.7V.It is equipped with 12 pin count.It works with the minimal supply voltage of 2.7V to meet highest efficiency standards.The current that can be supplied to the load is 60mA.The internal voltages needed to power systems is 5.5V.The output voltage should not be in excess of 5.7V.

NCP5602MUTBG Features

Available in the 12-UFLGA Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 1MHz
Supply voltage of 3.6V
Operating with the supply voltage of 5.5V

NCP5602MUTBG Applications

There are a lot of ON Semiconductor
NCP5602MUTBG LED Driver ICs applications.

General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
