ON Semiconductor NCP51200MNTXG
ON Semiconductor NCP51200MNTXG

ON Semiconductor NCP51200MNTXG

Manufacturer No:

NCP51200MNTXG

Manufacturer:

ON Semiconductor

Package:

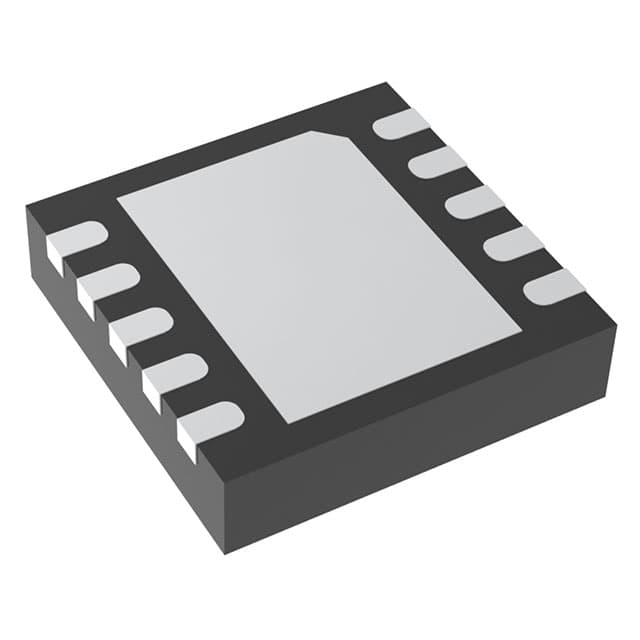

10-VFDFN Exposed Pad

Description:

3A Sink/Source DDR Termination Regulator w/ VTTREF Buffered Reference for DDR2, DDR3, DDR3L and DDR4

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP51200MNTXG information

ON Semiconductor NCP51200MNTXG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NCP51200MNTXG.

  • Type
  • Parameter
  • Case Outline
  • 485C
  • MSL Temp (°C)
  • 260
  • Container Type
  • REEL
  • Container Qty.
  • 3000
  • VCC Bias Max (V)
  • 3.5
  • Power Good
  • Yes
  • Remote Sense
  • Yes
  • Package Type
  • DFN-10
  • MSL Type
  • 1
  • DDR Memory Type
  • DDR
  • IOUT VTT Max (A)
  • 3
  • IQ Typ (µA)
  • 700
  • VCC Bias Min (V)
  • 2.375

Download datasheets and manufacturer documentation for ON Semiconductor NCP51200MNTXG.

Datasheet:

Package Drawing:

The NCP51200 is a source/sink Double Data Rate (DDR) termination regulator specifically designed for low input voltage and low-noise systems where space is a key consideration. The NCP51200 maintains a fast transient response and only requires a minimum output capacitance of 20 uF. The NCP51200 supports a remote sensing function and all power requirements for DDR VTT bus termination. The NCP51200 can also be used in low-power chipsets and graphics processor cores that require dynamically adjustable output voltages. In addition, the NCP51200 provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 (suspend to RAM) for DDR applications.The NCP51200 is available in the thermally-efficient DFN10 Exposed Pad package, and is rated both Green and Pb-free.

Application

  • DDR Memory Termination
  • Graphics Processor Core Supplies
  • Chipset/RAM Supplies as Low as 0.5 V
  • Active Bus Termination
  • TPS51200 upgrade with improved output accuracy and transient response

End Product

  • Desktop PC's, Notebooks, and Workstations
  • Servers and Networking equipment
  • Set Top Boxes, LCD-TV/PDP-TV, Copier/Printers

Feature

  • Input Voltage Rails: Supports 2.5 and 3.3 V Rails
  • PVCC Voltage Range: 1.1 to 3.5 V
  • Integrated Power MOSFETs
  • Fast Load-Transient Response
  • PGOOD-Logic output pin to Monitor VTT Regulation
  • EN-Logic input pin for Shutdown mode
  • VRI-Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider
  • Remote Sensing (VTTS)
  • Built-in Soft Start, Under Voltage Lockout and Over Current Limit
