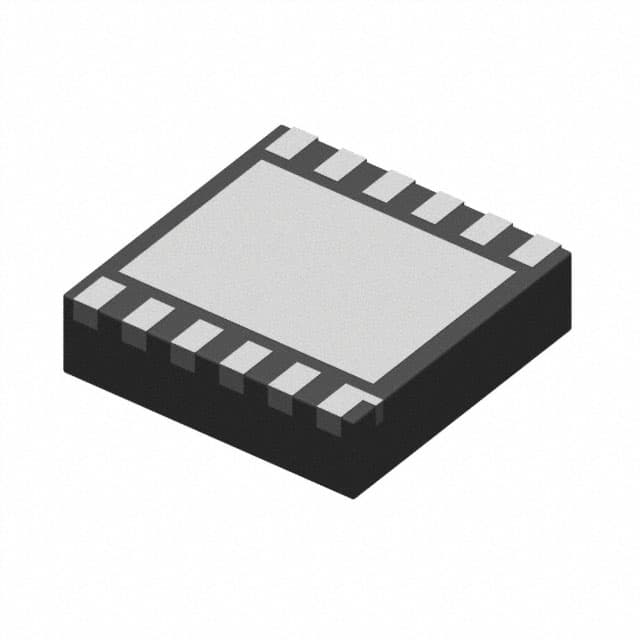

12-VFDFN Exposed Pad

Description:

Load Switch, Integrated, ecoSWITCH™, 14 A, Fault Protection

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP45540IMNTWG-H information

ONSEMI NCP45540IMNTWG-H technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP45540IMNTWG-H.

  • Type
  • Parameter
  • Case Outline
  • 506CD
  • Container Type
  • REEL
  • Output Discharge (Y/N)
  • Y
  • Vin Max (V)
  • 13.5
  • Iq (µA)
  • 750
  • UVLO (Y/N)
  • Y
  • Product Family
  • ecoSwitch
  • MSL Temp (°C)
  • 260
  • Container Qty.
  • 3000
  • Over Current - Current Source (Y/N)
  • N
  • Current Limit (FIXED/ADJ/NO)
  • FIXED
  • Reverse Current Blocking (Y/N)
  • N
  • IMON Output (Y/N)
  • N
  • Vin Min (V)
  • 0.5
  • eFuse / Hot Plug (Y/N)
  • Y
  • MSL Type
  • 3
  • Over Current - Shutdown (Y/N)
  • Y
  • Over Voltage Protection (Y/N)
  • N
  • PGOOD (Y/N)
  • Y
  • Rds(on) Typ (mΩ)
  • 7.7
  • Input / Output
  • 1:1
  • Package Type
  • DFN-12
  • FAULT Signal (Y/N)
  • N
  • Max Current (A)
  • 14

Download datasheets and manufacturer documentation for ONSEMI NCP45540IMNTWG-H.

Datasheet:

Package Drawing:

The NCP45540 load switch provides a component and area-reducing solution for efficient power domain switching with inrush current limit via soft-start. In addition to integrated control functionality with ultra low on-resistance, this device offers system safeguards and monitoring via fault protection and power good signaling. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.

Application

  • Power Management
  • System Protection
  • Hot Swapping

End Product

  • Portable Electronics and Systems
  • Telecom, Networking, Medical, and Industrial Equipment
  • Set-top Boxes
  • Residential Gateways
  • Notebook and Tablet Computers
  • Enterprise Servers & Storage
  • Hot Swap Devices and Peripheral Ports
  • Handheld Devices

Feature

  • Advanced Controller with Charge Pump
  • Integrated N-Channel MOSFET
  • Soft-Start via Slew Rate Control (Adjustable)
  • Ultra-Low On-Resistance
  • Input Voltage Range 0.5 V to 13.5 V (18V Tolerant)
  • Low Standby Current
  • Quick Output Discharge Function (Adjustable)
  • No External Components Required
  • Enable Pins with CMOS Input Levels
  • Power Good Signaling
  • Fault Protection: Over Temperature
  • Fault Protection: Under Voltage Lockout
  • Fault Protection: Short-Circuit Protection
  • Pb-Free Device

User Guide
