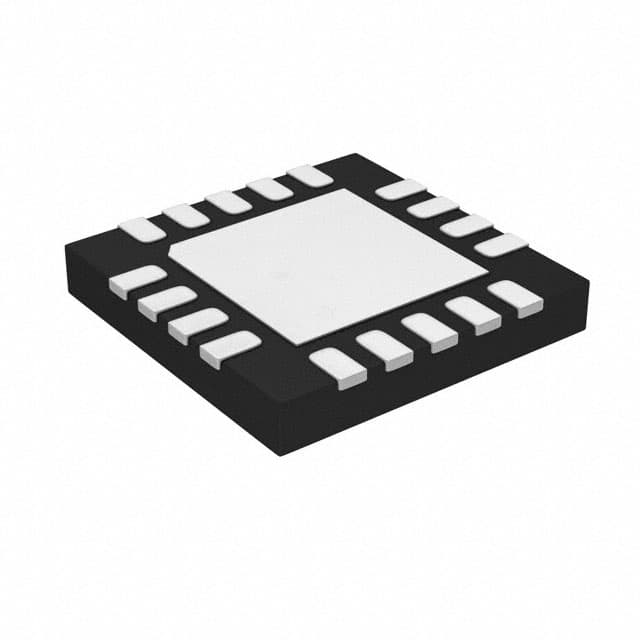

ONSEMI NCP4545IMNTWG-L

Manufacturer No:

NCP4545IMNTWG-L

Manufacturer:

ONSEMI

Package:

18-VFQFN Exposed Pad

Description:

N-Channel 0.5mm PMIC ecoSWITCH? Series 18 Pin 3.3V 18-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP4545IMNTWG-L information

ONSEMI NCP4545IMNTWG-L technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP4545IMNTWG-L.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
19 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
18-VFQFN Exposed Pad

Number of Pins
18

Operating Temperature
0°C~70°C TA

Packaging
Tape & Reel (TR)

Series
ecoSWITCH?

Published
2012

JESD-609 Code
e3

Feature
Slew Rate Controlled

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
18

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Power Rating
1.98W

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Number of Outputs
1

Output Type
N-Channel

Max Output Current
10.5A

Number of Channels
1

Voltage
5.5V

Interface
On/Off

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
Not Required

Adjustable Threshold
NO

Input Type
Non-Inverting

Switch Type
General Purpose

Halogen Free
Halogen Free

Ratio - Input:Output
1:1

Voltage - Load
3V~5.5V

Rds On (Typ)
4.9m ?

Height
950?m

Length
3mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI NCP4545IMNTWG-L.

Datasheets:

onsemiconductor-ncp4545imntwg-datasheets-2727.pdf

NCP4545IMNTWG-L Overview

A Tape & Reel (TR) is used to package it.In the 18-VFQFN Exposed Pad package, it is included.The LED driver is mounted as Surface Mount.General Purpose is the switch type it owns.To ensure reliable operation, set the temperature to 0°C~70°C TA.As a default, the output is set to 1.A voltage of Not Required is used to power it.There is a maximum output voltage of N-Channel volts on this LED driver.A lighting driver with Slew Rate Controlled features is available.In total, there are 18 terminations.The operation is carried out using the 18 pins.As far as the lighting driver is concerned, there are 1 functions.The maximum output current is reduced to 10.5A to meet the operation criteria.Using a voltage of 3.3V allows for high efficiency.Surface Mount is mounted in the way of this lighting driver.The LED driving board is equipped with a total of 18 pins.This electrical component is part of the ecoSWITCH? series.There is an analog input IC in this gadget, which is POWER SUPPLY SUPPORT CIRCUIT.To choose from, there are 1 channels.

NCP4545IMNTWG-L Features

Supplied from 3.3V
1 channels

NCP4545IMNTWG-L Applications

There are a lot of ON Semiconductor
NCP4545IMNTWG-L Power Switches ICs applications.

Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
