Manufacturer No:

NCP1294EDR2G

Manufacturer:

ONSEMI

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

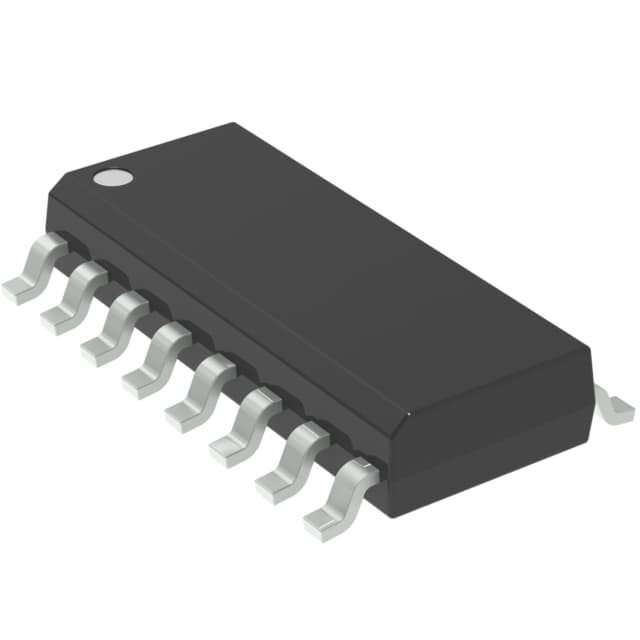

16 Terminations 3.8V~15V 16 Pin NCP1294 AC to DC power converter

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1294EDR2G information

ONSEMI NCP1294EDR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1294EDR2G.

  • Type
  • Parameter
  • Lifecycle Status
  • OBSOLETE (Last Updated: 3 days ago)
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 16-SOIC (0.154, 3.90mm Width)
  • Number of Pins
  • 16
  • Operating Temperature
  • -40°C~125°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Switching Regulator or Controllers
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Number of Functions
  • 1
  • Terminal Pitch
  • 1.27mm
  • Frequency
  • 1MHz
  • Base Part Number
  • NCP1294
  • Pin Count
  • 16
  • Analog IC - Other Type
  • SWITCHING CONTROLLER
  • Operating Supply Current
  • 9.5mA
  • Output Current
  • 1A
  • Voltage - Supply (Vcc/Vdd)
  • 3.8V~15V
  • Control Features
  • Frequency Control, Soft Start, Sync
  • Input Voltage (Min)
  • 4.7V
  • Topology
  • Boost, Flyback, Forward
  • Control Mode
  • CURRENT-MODE
  • Control Technique
  • PULSE WIDTH MODULATION
  • Rise Time
  • 60ns
  • Fall Time (Typ)
  • 25 ns
  • Switcher Configuration
  • SINGLE
  • Internal Switch(s)
  • No
  • Fault Protection
  • Current Limiting, Over Temperature, Over Voltage
  • Max Duty Cycle
  • 90 %
  • Duty Cycle
  • 85%
  • Output Isolation
  • Isolated
  • Voltage - Start Up
  • 4.6V
  • Length
  • 9.9mm
  • Height Seated (Max)
  • 1.75mm
  • Width
  • 3.9mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI NCP1294EDR2G.

Datasheets:

ReachStatement:

NCP1294EDR2G Overview


It is embedded in package 16-SOIC (0.154, 3.90mm Width) .You can get it in AC/DC power converter Tape & Reel (TR) .As you can see, this AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~125°C TJ °C in order to achieve its full performance.Analog IC type SWITCHING CONTROLLER is utilized in this AC DC converter.A range of 3.8V~15V supply voltages (Vcc/Vdd) can be used.There have been 16 terminations of this program.Approximately 16 pins are present on the ac/dc converter.The pins of the ac-dc converter total to 16 .The ac dc converters is suitable for mounting by Surface Mount .The NCP1294 family allows you to search for similar acdc converters.There are a ac to dc conversions included in Switching Regulator or Controllers .Currently, the output current is set to 1A .This AC/DC converter produces a voltage of 15V as its output.As long as AC to DC converter is operated at frequency 1MHz ,it is capable of attaining high efficiency.In the following link, you will find the REACH SVHC standard: No SVHC .
