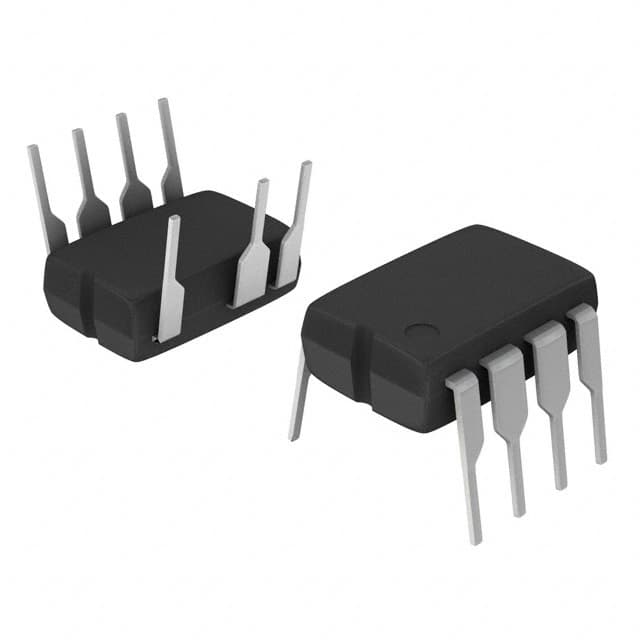

ONSEMI NCP1216P133

Manufacturer No:

NCP1216P133

Manufacturer:

ONSEMI

Package:

8-DIP (0.300, 7.62mm), 7 Leads

Description:

7 Terminations 10V~16V 7 Pin NCP1216 AC to DC power converter 1 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1216P133 information

ONSEMI NCP1216P133 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1216P133.

Type
Parameter

Mounting Type
Through Hole

Package / Case
8-DIP (0.300, 7.62mm), 7 Leads

Surface Mount
NO

Number of Pins
7

Operating Temperature
0°C~150°C TJ

Packaging
Tube

Published
2007

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
7

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Switching Regulator or Controllers

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Terminal Pitch
2.54mm

Frequency
133kHz

Base Part Number
NCP1216

Pin Count
8

Number of Outputs
1

Operating Supply Voltage
16V

Input Voltage-Nom
11V

Voltage - Supply (Vcc/Vdd)
10V~16V

Topology
Flyback

Control Mode
CURRENT-MODE

Output Current-Max
0.5A

Control Technique
PULSE WIDTH MODULATION

Rise Time
60ns

Fall Time (Typ)
20 ns

Switcher Configuration
SINGLE

Internal Switch(s)
No

Fault Protection
Over Load, Over Temperature, Short Circuit

Max Duty Cycle
81 %

Duty Cycle
75%

Output Isolation
Isolated

Height Seated (Max)
4.45mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ONSEMI NCP1216P133.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCP1216P133 Overview

An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.Tube case is available for the ac dc converter.Through Hole mounts this AC/DC converter.The ac dc converter needs to be operated at 0°C~150°C TJ °C in order to perform.The AC DC converter utilizes a type SWITCHING CONTROLLER analog IC.Supply voltage (Vcc/Vdd) does not need to exceed 10V~16V .As a result, it has a total of 7 terminations.In this ac/dc converter, there are 7 pins.There are 8 pins in total.If you select the NCP1216 family, you will be able to search similar acdc converters.A total of 1 outputs are available for processing.The ac to dc conversions can be found in Switching Regulator or Controllers .AC to DC converter reaches high efficiency when operated at a frequency of 133kHz .Currently, the maximum current that the ac to dc inverter can take is 0.5A .When the supply voltage is 16V , the interface IC may conduct.

NCP1216P133 Features

Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
With 7 pins
Operating Supply Voltage at the range of 16V

NCP1216P133 Applications

There are a lot of ON Semiconductor
NCP1216P133 AC DC Converters applications.

Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors
Standby Power Supplies
